ASUS TUF Gaming B450-PLUS II

ASUS TUF Gaming B450-PLUS II AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $119.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF Gaming B450-PLUS II is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

AMD AM4 Socket: Compatible To Ryzen 5000, 3Rd/2Nd/1St Gen AMD Ryzen Cpus

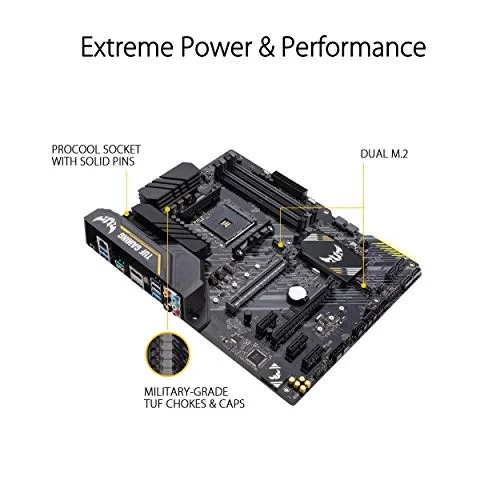

Robust Power Design: Drmos Power Stages With High-Quality Alloy Chokes And Durable Capacitors To Provide Reliable Power For The Last AMD High-Count-Core Cpus

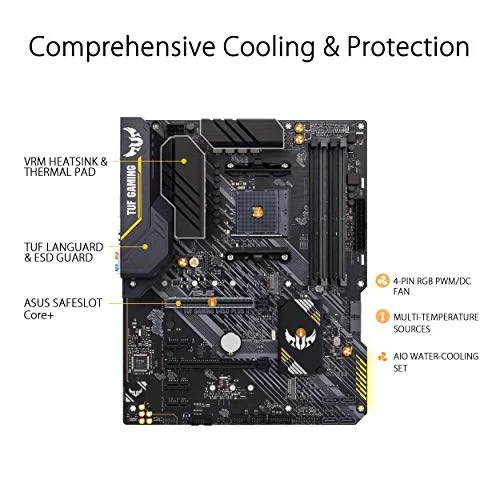

Optimized Thermal Solution: Fanless VRM And PCH Heatsink, Multiple Hybrid Fan Headers And Fan Speed Management With Fan Xpert 2 Utility

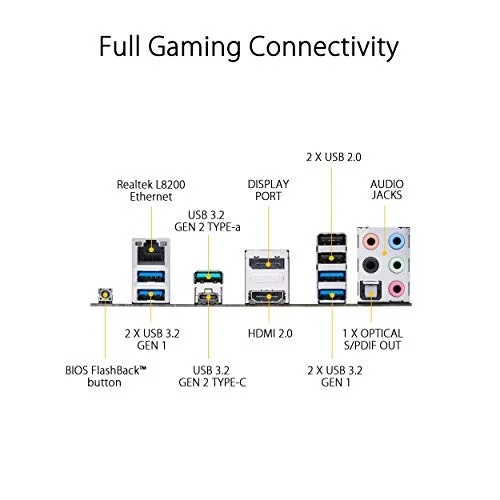

Gaming Connectivity: Supports HDMI 2.0B (4K@60HZ) And Displayport 1.2 Output, Featuring Dual M.2 Slots (Nvme SSD), Front Panel USB 3.2 Gen 2 Type-A Connector, USB 3.2 Gen 2 Type-A Port

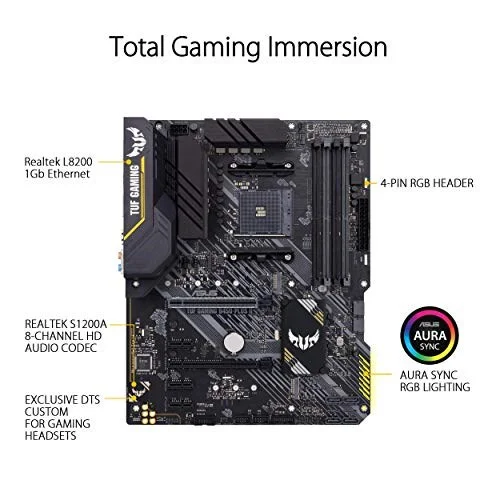

Industry-Leading Gaming Audio & AI Noise Canceling Microphone Technology: Codec With DTS Sound Unbound Draws You Deeper Into The Action. Communicate Clearly With ASUS AI Noise Cancelling Mic Technology.
Gaming Look And Feel: 1X RGB Header Onboard With ASUS Exclusive Armoury Crate Utility
DIY Friendly: With BIOS Flashback And ASUS Exclusive UEFI BIOS, 256Mb BIOS Flash ROM
Please Ensure Your BIOS Is Up To Date If Installing A Compatible Ryzen 5000 Series CPU. Visit ASUS Site Search By Motherboard Model Name, Click On “Support” Tab, Drivers And Tools, Then BIOS & Firmware To Download The Latest BIOS.

Manufacturer	ASUS
Model Number	TUF GAMING B450-PLUS II 90MB1650-M0AAY0
Launch Date	October 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING B450-PLUS II
SKU Code	TUF GAMING B450-PLUS II
GTIN / EAN	192876957493
