ASUS TUF Gaming B560M-PLUS WiFi

ASUS TUF Gaming B560M-PLUS WiFi LGA1200 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $110.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB560

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

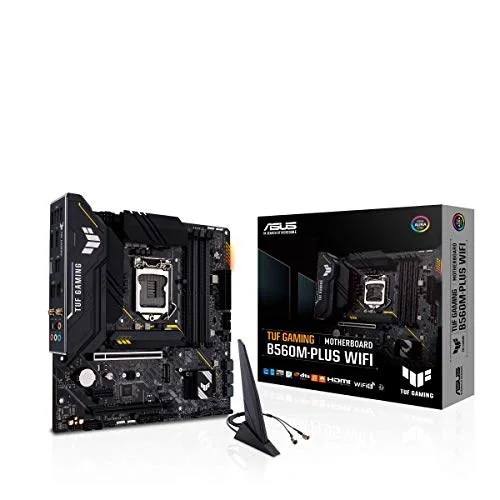

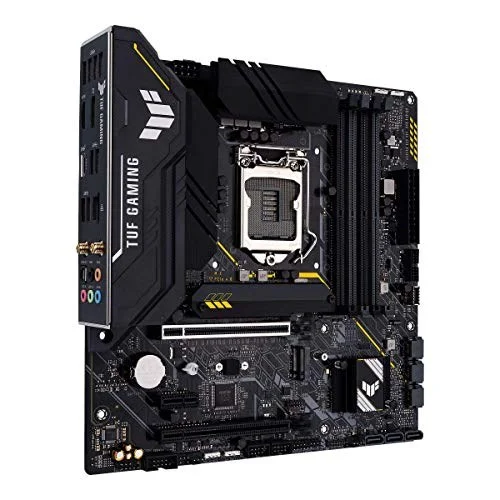

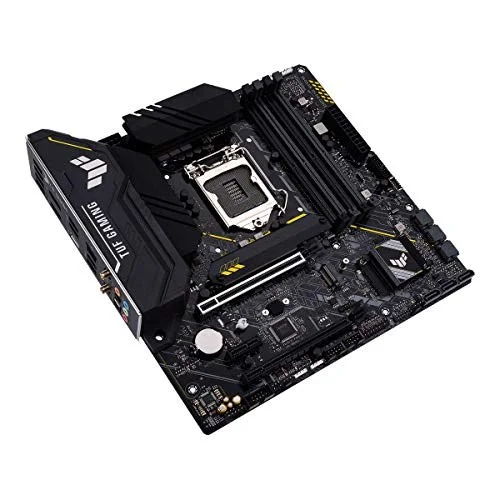

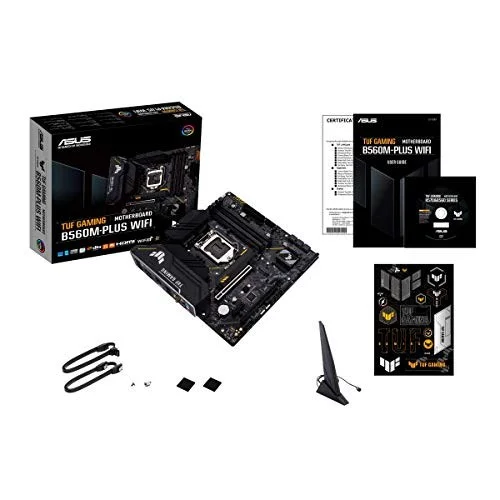

The ASUS TUF Gaming B560M-PLUS WiFi is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).

Intel LGA 1200 Socket: Ready For 11Th Gen Intel Core Processors
Enhanced Power Solution: 8+1 Power Stages, 6-Layer PCB, Procool Socket, And Durable Capacitors For Stable Power Delivery
Comprehensive Cooling: VRM Heatsink, Flexible M.2 Heatsink, PCH Heatsink, Hybrid Fan Headers And Fan Xpert 2+
Next-Gen Connectivity: Pcie 4.0, Realtek 2.5Gb Ethernet, Intel Wi-Fi 6, Rear USB 3.2 Gen 2, Front USB 3.2 Gen 1 Type-C And Thunderbolt 4 Support
Two-Way AI Noise-Cancelation: Reduce Background Noise From The Microphone And Audio Output For Crystal-Clear Communication In Games Or Video Conferences

Manufacturer	ASUS
Model Number	TUF GAMING B560M-PLUS WIFI 90MB1770-M0EAY0 90MB1770-M0AAY0
Launch Date	February 2020
CPU Socket	LGA1200
Chipset Model	Intel B560
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING B560M-PLUS WIFI
SKU Code	TUF GAMING B560M-PLUS WIFI
GTIN / EAN	195553125284
