Asus TUF GAMING B650M-PLUS WIFI

Asus TUF GAMING B650M-PLUS WIFI AM5 Micro-ATX DDR5 192 GB Motherboard

Asus Motherboard $129.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus TUF GAMING B650M-PLUS WIFI is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

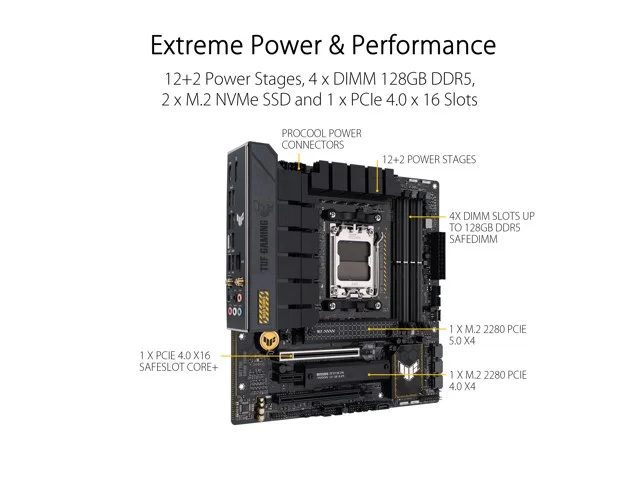

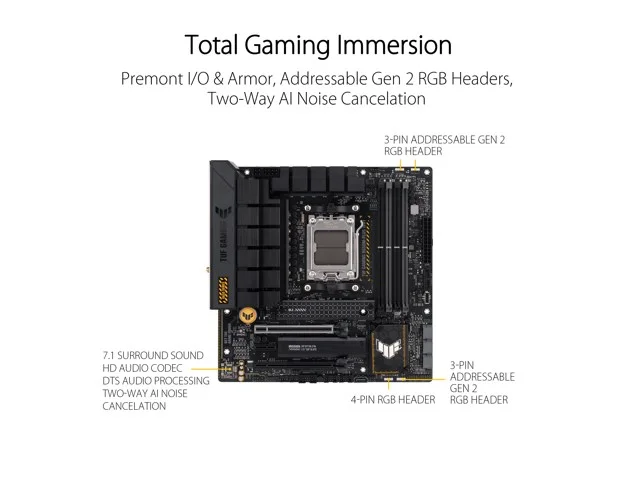

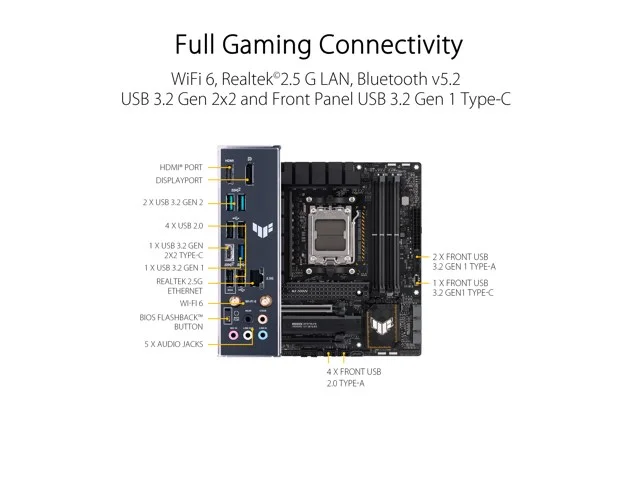

ASUS TUF GAMING B650M-PLUS WIFI Socket AM5 (LGA 1718) Ryzen 7000 mATX gaming motherboard(14 power stages, PCIe 5.0 M.2 support, DDR5 memory, 2.5 Gb Ethernet, WiFi 6, USB4 support and Aura Sync) Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. PCI Express x1: 1 x PCIe 4.0/3.0 x1 Audio Channels: Realtek 7.1 Surround Sound High-Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers Max LAN Speed: 1 x Realtek 2.5Gb Ethernet TUF LANGuard Maximum Memory Supported: 128GB Channel Supported…

Manufacturer	Asus
Model Number	TUF GAMING B650M-PLUS WIFI 90MB1BF0-M0AAY0 90MB1BF0-MVAAY0
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING B650M-PLUS WIFI
SKU Code	TUF GAMING B650M-PLUS WIFI
GTIN / EAN	195553912112
