ASUS TUF Gaming B660M-E D4

ASUS TUF Gaming B660M-E D4 LGA1700 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $211.15

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

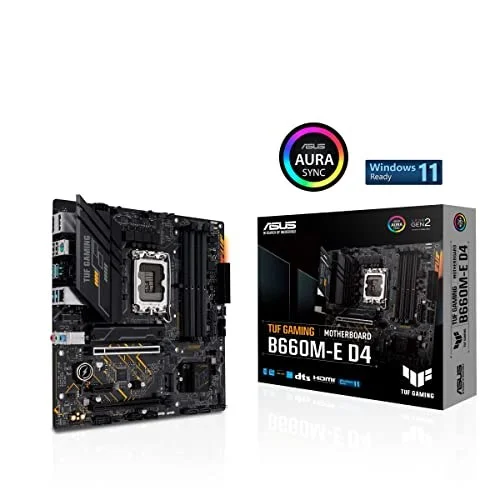

The ASUS TUF Gaming B660M-E D4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).

ASUS TUF GAMING B660M-E D4 mATX motherboard is designed to support latest 12th Gen Intel CPU’s with LGA 1700 socket, Pentium Gold and Celeron Processors with B660 Intel Chipset.

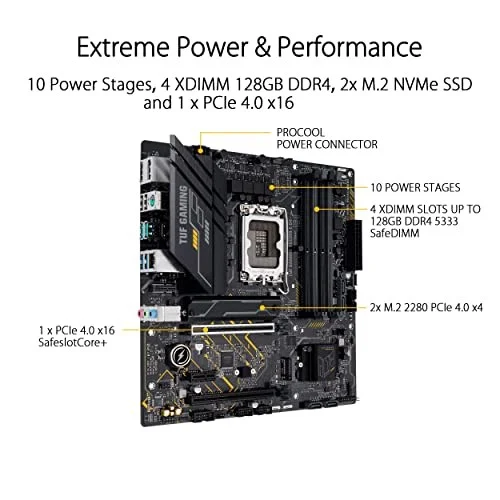

The board is built with PCIe 4.0 Ready supporting 4 x DIMM, up to 128GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.

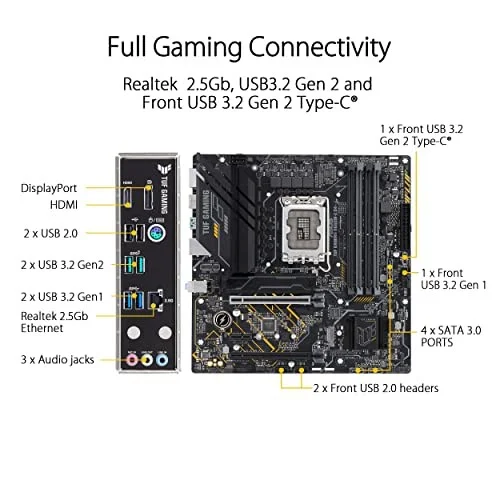

Equipped with the next-gen Turbo boost max technology of PCIe 4.0, Two M.2 slots(PCIe 4.0), Realtek 2.5Gb Ethernet, Two USB 3.2 Gen 2 Type-A, Two USB 3.2 Gen 1 Type-A, Two USB 2.0, Front panel USB 3.2 Gen 2, USB 3.2 Gen 1, Two USB 2.0, Four SATA 6Gb/s, HDMI, DP support.

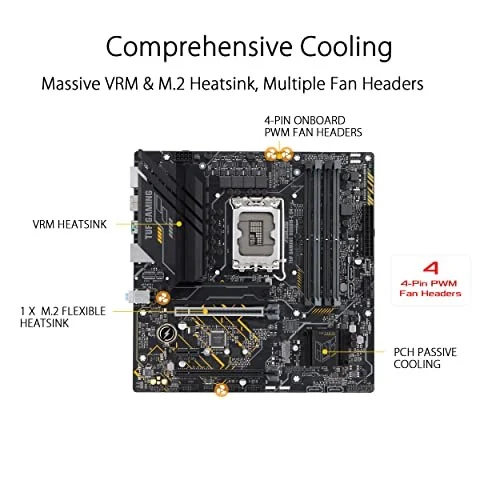

Comes with most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, PCH heatsink and hybrid fan headers. We adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
TUF GAMING B660M-E D4 programmed with Q-LED Core display, that produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also have a handful features like Overvoltage Protection, DRAM Overcurrent Protection, Stainless-Steel Back I/O and LANGuard.

Manufacturer	ASUS
Model Number	TUF GAMING B660M-E D4 90MB19J0-M0EAY0
Launch Date	January 2022
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING B660M-E D4
SKU Code	TUF GAMING B660M-E D4
GTIN / EAN	4711081507697
