ASUS TUF Gaming B760M-PLUS WiFi II

ASUS TUF Gaming B760M-PLUS WiFi II LGA1700 Micro-ATX DDR5 192 GB Motherboard

Asus Motherboard $194.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB760

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF Gaming B760M-PLUS WiFi II is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).

Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors

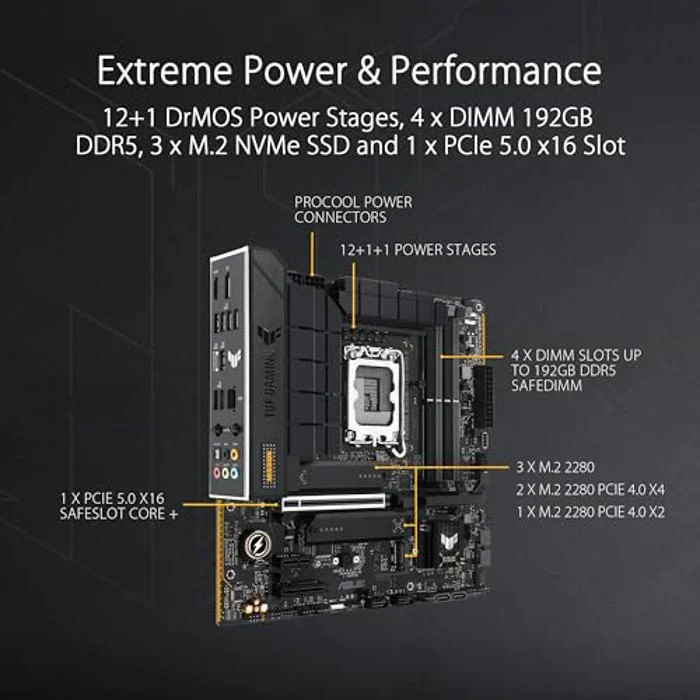

Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+8 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

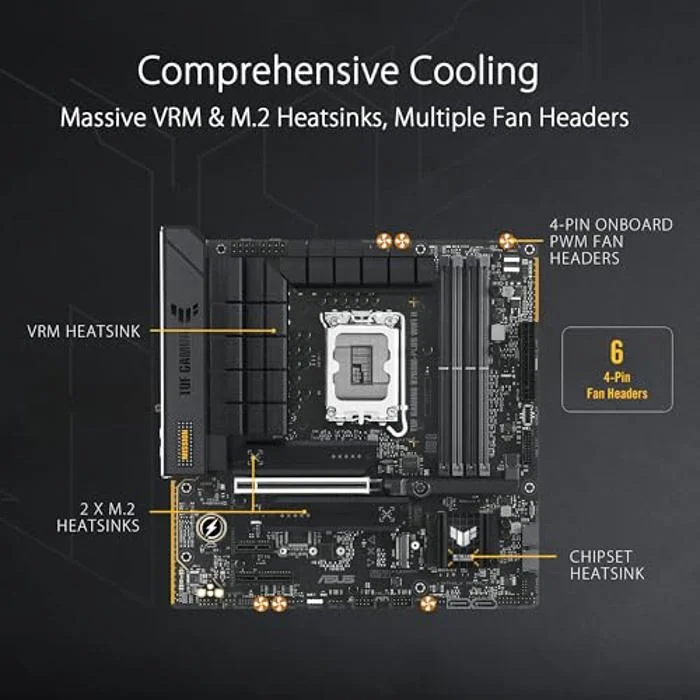

Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

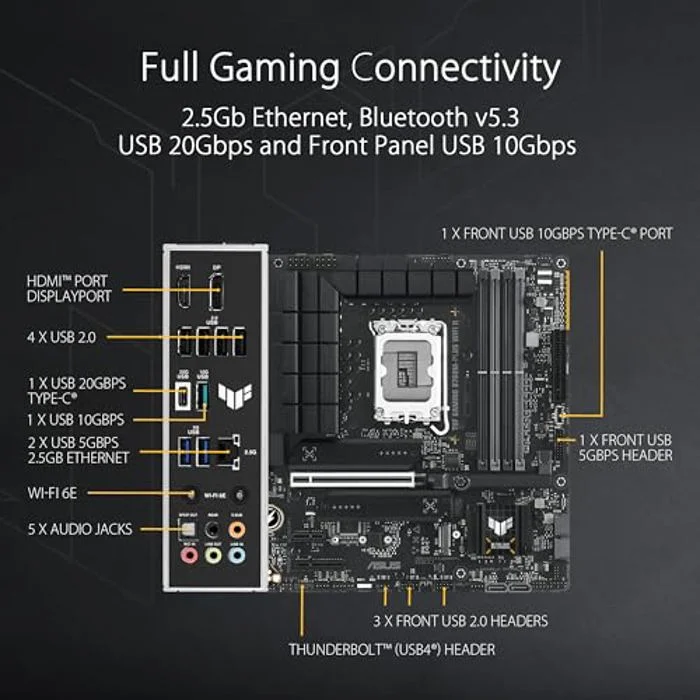

Latest connectivity: PCIe 5.0 slot, three PCIe 4.0 M.2 slots, rear USB 20Gbps Type-C, front panel header for USB 10Gbps Type-C and Thunderbolt (USB4) header support
Made for online gaming: WiFi 6E, Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Manufacturer	ASUS
Model Number	TUF GAMING B760M-PLUS WIFI II 90MB1HE0-M0AAY0 90MB1HE0-M0EAY0
Launch Date	February 2024
CPU Socket	LGA1700
Chipset Model	Intel B760
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	1
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING B760M-PLUS WIFI II
SKU Code	TUF GAMING B760M-PLUS WIFI II
GTIN / EAN	197105461369
