ASUS TUF GAMING X570-PLUS (WI-FI)

ASUS TUF GAMING X570-PLUS (WI-FI) AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $184.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF GAMING X570-PLUS (WI-FI) is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).

AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M. 2 Drives, USB 3. 2 Gen2 and AMD StoreMI

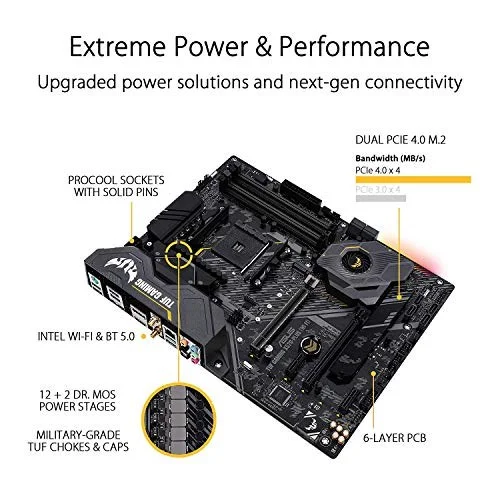

Enhanced power solution: military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability

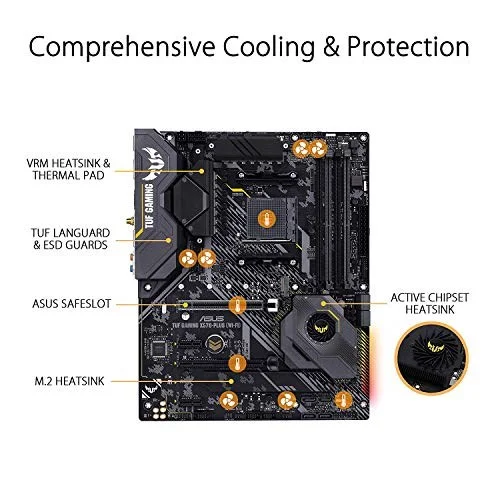

Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M. 2 heatsink, hybrid fan headers and Fan Xpert
Next-gen connectivity: Dual PCIe 4. 0 m. 2 and USB 3. 2 Gen 2 Type-A/Type-C

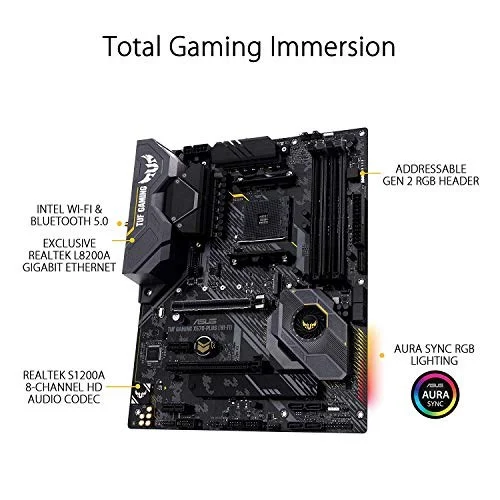

Gaming Networking: Exclusive Realtek L8200A Gigabit Ethernet, Intel 2x2 802. 11ac Wi-Fi with MU-MIMO support, Bluetooth 5. 0, TUF LANGuard and technology

Manufacturer	ASUS
Model Number	TUF GAMING X570-PLUS (WI-FI) 90MB1170-M0EAY0 90MB1170-MVAAY0 90MB1170-M0AAY0
Launch Date	July 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5100 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING X570-PLUS (WI-FI)
SKU Code	TUF GAMING X570-PLUS (WI-FI)
GTIN / EAN	192876388495
