Asus TUF GAMING X670E-PLUS WIFI

Asus TUF GAMING X670E-PLUS WIFI AM5 ATX DDR5 192 GB Motherboard

Asus Motherboard $259

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX670E

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller	Shipping	Price
	-	N/A
	-	N/A
	-	N/A
	£49.34	N/A Visit Store

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The Asus TUF GAMING X670E-PLUS WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

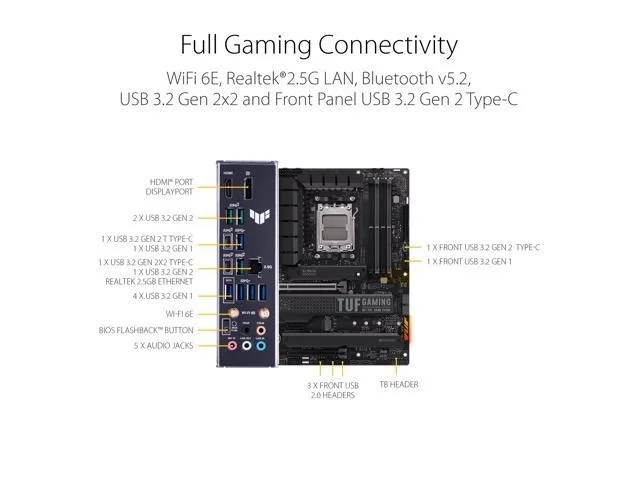

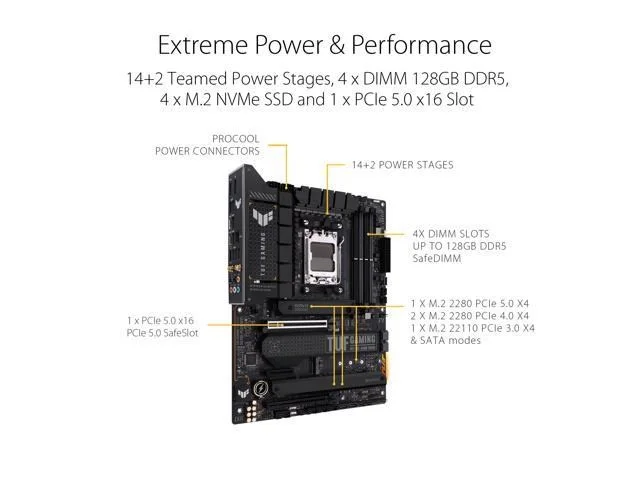

Specification:CPUAMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD X670Memory4 x DIMM, Max. 128GB, DDR5 5600MHz up to 6400MHz(OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x DisplayPort1 x HDMI port PCI SlotsAMD Ryzen 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot(s)AMD X670 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slotsStorageTotal supports 4 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD X670 Chipset:M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Networking1 x Realtek 2.5Gb EthernetWi-Fi 6EBluetoothAudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODECConnectivity1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)4 x USB 3.2 Gen 2 port(s) (3 x Type-A, 1 x USB Type-C)5 x USB 3.2 Gen 1 port(s) (5 x Type-A)1 x DisplayPort1 x HDMI port1 x Realtek 2.5Gb Ethernet port5 x Audio jacks 1 x BIOS FlashBack button Internal PortsFan and Cooling related: 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x W_PUMP+ header(s)Power related: 1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage related: 4 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB: 1 x USB 3.2 Gen 2 connector (supports USB Type-C )1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports3 x USB 2.0 headers support additional 6 USB 2.0 portsMiscellaneous: 3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt headerForm FactorATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Specifications

Manufacturer	Asus
Model Number	TUF GAMING X670E-PLUS WIFI 90MB1BK0-M0AAY0
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel X670E
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING X670E-PLUS WIFI
SKU Code	TUF GAMING X670E-PLUS WIFI
GTIN / EAN	195553905732
