ASUS TUF Gaming X870-PLUS WiFi

ASUS TUF Gaming X870-PLUS WiFi AM5 ATX DDR5 192 GB Motherboard

Asus Motherboard $251.48

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX870

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF Gaming X870-PLUS WiFi is a ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

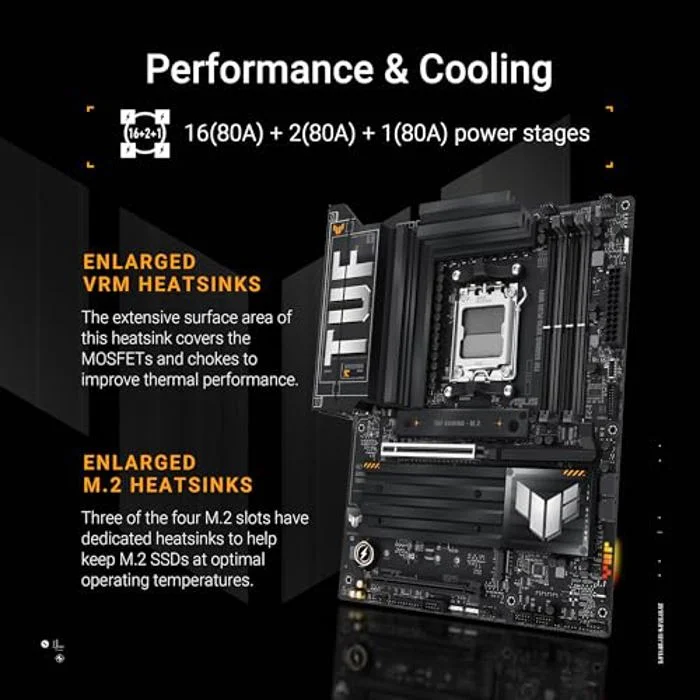

Enhanced Power Solution: 16+2+1, 80A SPS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery

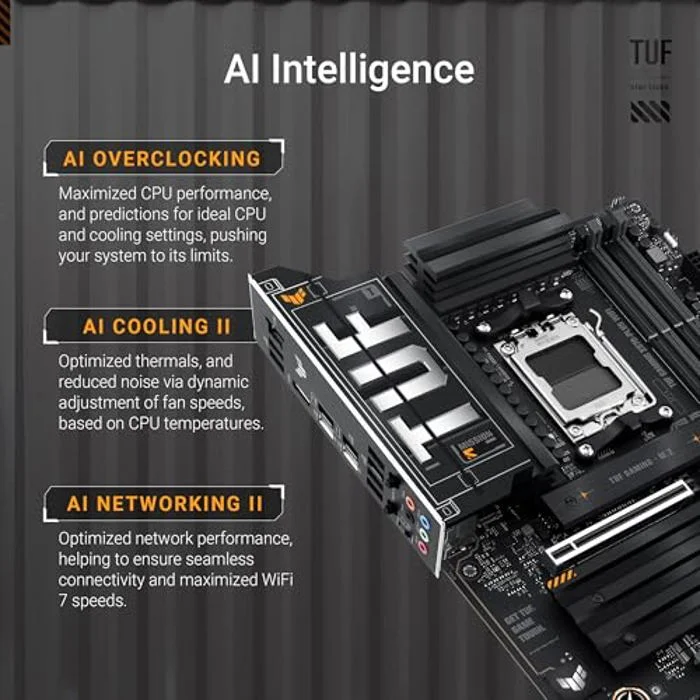

Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, and AEMP to simplify setup and improve performance
Overclocking Technologies: Dynamic OC Switcher, Core Flex and PBO Enhancement
Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, with massive M.2 heatsinks
Ultrafast Connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, dual USB4 (40Gbps) Type-C ports, front USB 20Gbps Type-C with PD Fast Charge Support
Comprehensive Cooling: Enlarged VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II

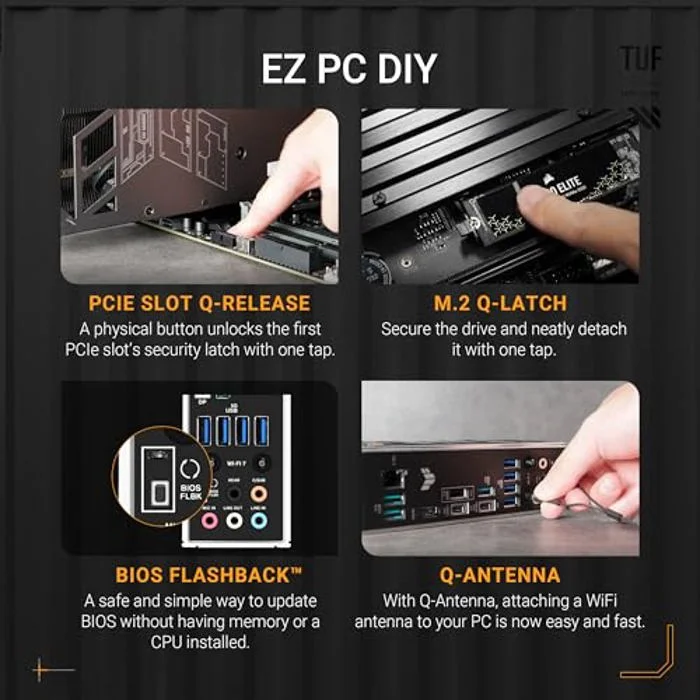

DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, BIOS FlashBack button, Q-LED, Pre-mounted I/O shield, Q-Dashboard

Manufacturer	ASUS
Model Number	TUF GAMING X870-PLUS WIFI 90MB1IU0-M0AAY0
Launch Date	September 2024
CPU Socket	AM5
Chipset Model	Intel X870
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-5600 / DDR5-8000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING X870-PLUS WIFI
SKU Code	TUF GAMING X870-PLUS WIFI
GTIN / EAN	197105723603
