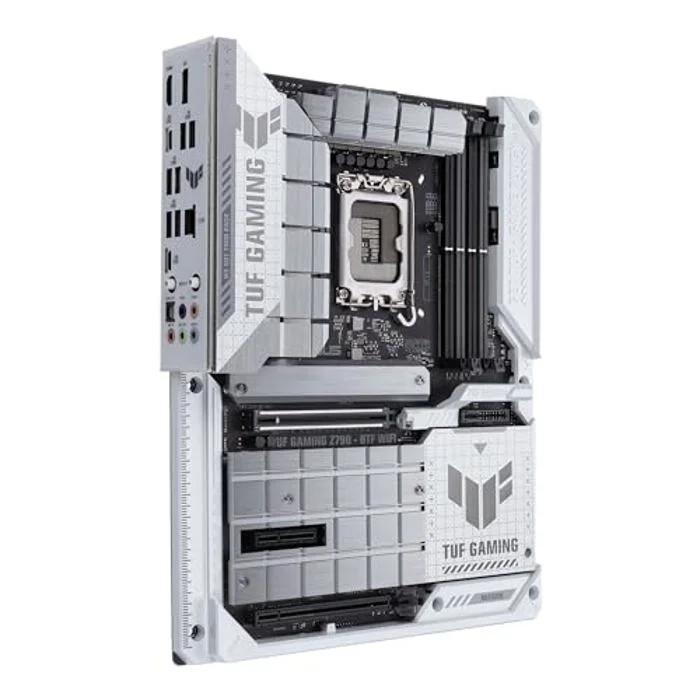

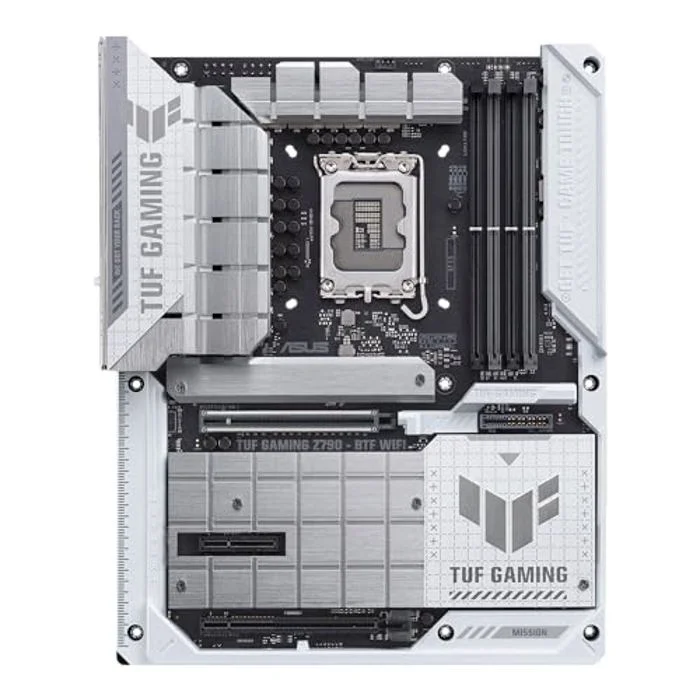

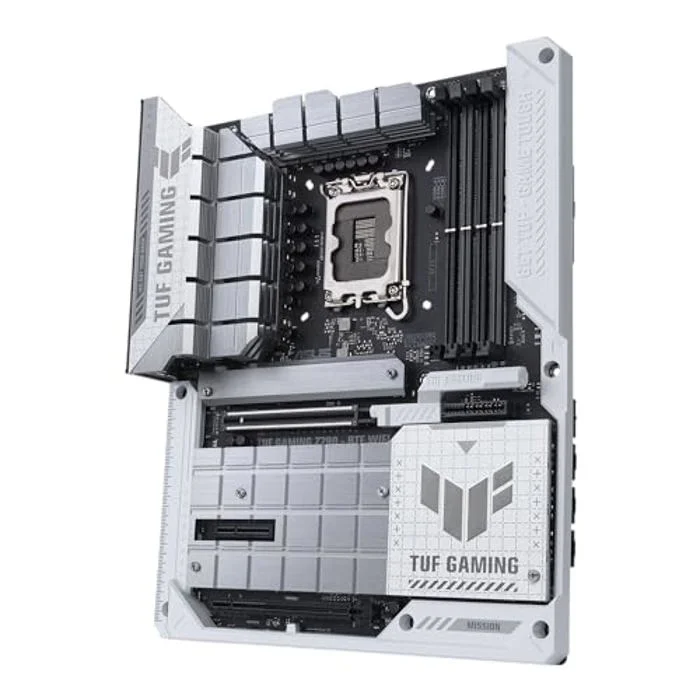

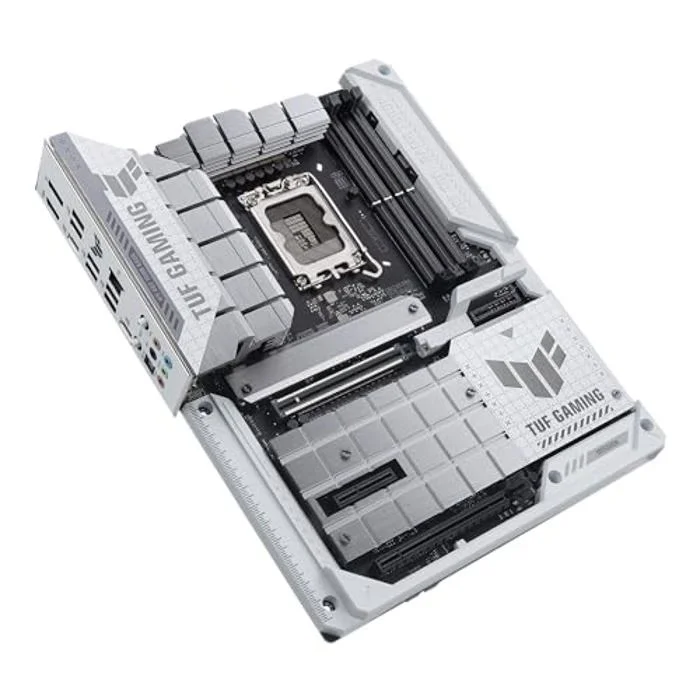

ASUS TUF Gaming Z790-BTF WiFi

ASUS TUF Gaming Z790-BTF WiFi LGA1700 ATX DDR5 192 GB Motherboard

Asus Motherboard $249.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF Gaming Z790-BTF WiFi is a ATX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).

Intel LGA 1700 socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Premium power solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver
Hidden-Connector Design: Delivers an unprecedented lever of cable management to PC DIY enthusiasts
Graphics Card High Power Slot: Compatible with the PCIe high-power connector on the graphics card, delivering up to 600 watts through the motherboard
Exclusive AI & memory technology: AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II
Next-gen connectivity: PCIe 5.0, USB 20Gbps, front USB 10Gbps, and Thunderbolt 4 header
Made for online Gaming: WiFi 7 with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LANGuard
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Enlarged M.2 and VRM heatsinks, hybrid fan headers and the Fan Xpert 4 utility in Armoury Crate

Manufacturer	ASUS
Model Number	TUF GAMING Z790-BTF WIFI 90MB1GU0-M0AAY0
Launch Date	May 2024
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)

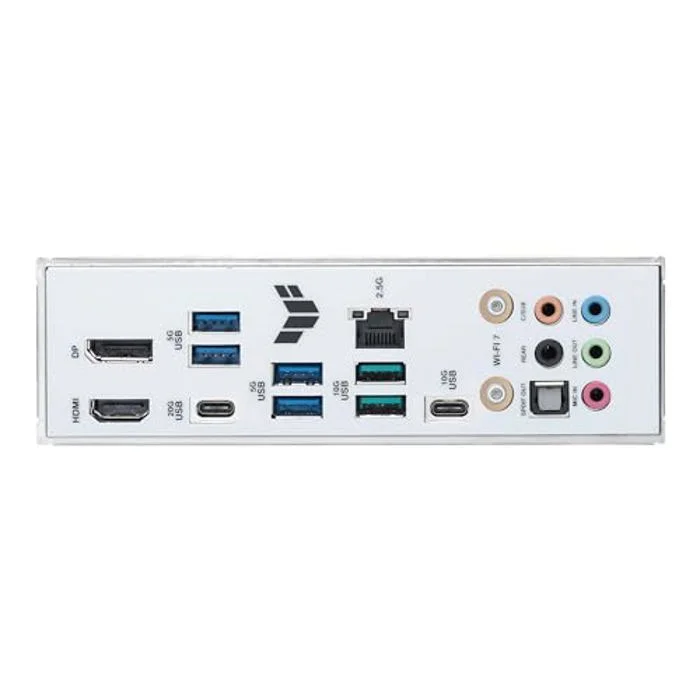

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	Yes
Manufacturer Part Number (MPN)	TUF GAMING Z790-BTF WIFI
SKU Code	TUF GAMING Z790-BTF WIFI
GTIN / EAN	197105468153
