ASUS TUF Gaming Z890-PLUS WiFi

ASUS TUF Gaming Z890-PLUS WiFi LGA1851 ATX DDR5 192 GB Motherboard

Asus Motherboard $265

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetZ890

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF Gaming Z890-PLUS WiFi is a ATX motherboard for LGA1851. It supports DDR5 memory up to 8600 MT/s (OC).

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)

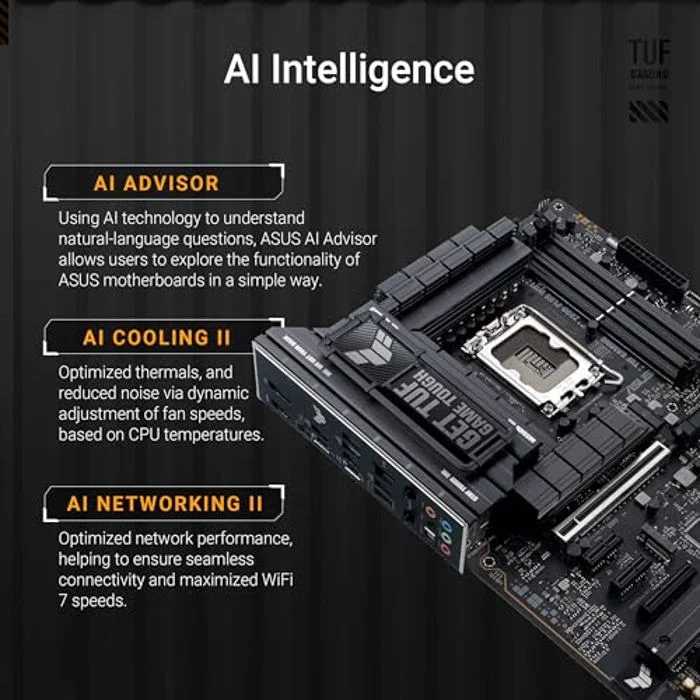

Exclusive AI: AI Cooling II and AI Networking II to simplify setup and improve performance

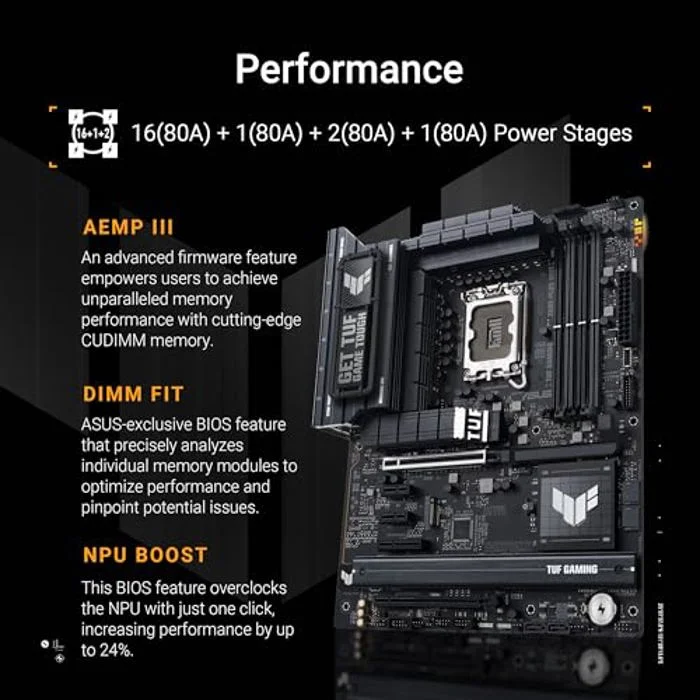

Robust Power Solution: 16+1+2+1 80A DrMOS power stages with ProCool power connectors, 8-layer PCB, alloy chokes and durable capacitors for stable power delivery
Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers and Fan Xpert 4 with AI Cooling II
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot with cooling solution and three PCIe 4.0 M.2 slots
Abundant Connectivity: Thunderbolt 4 USB Type-C port, front panel USB 20Gbps Type-C port, Thunderbolt (USB4) header supportHigh-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna and Intel 2.5 Gb Ethernet

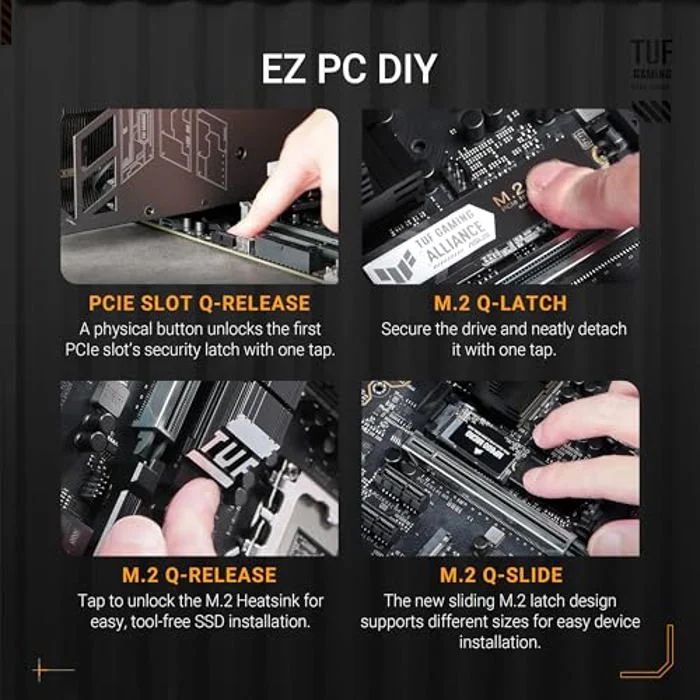

DIY Friendly Design: M.2 Q-Release, PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button and pre-mounted I/O shield
Unmatched Personalization: three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
Renowned Software: ASUS DriverHub, ASUS MyHotkey, TurboV Core, GlideX and intuitive UEFI BIOS dashboard

Manufacturer	ASUS
Model Number	TUF GAMING Z890-PLUS WIFI 90MB1IQ0-M0AAY0
Launch Date	October 2024
CPU Socket	LGA1851
Chipset Model	Intel Z890
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2280 - M Key, 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING Z890-PLUS WIFI
SKU Code	TUF GAMING Z890-PLUS WIFI
GTIN / EAN	197105763920
