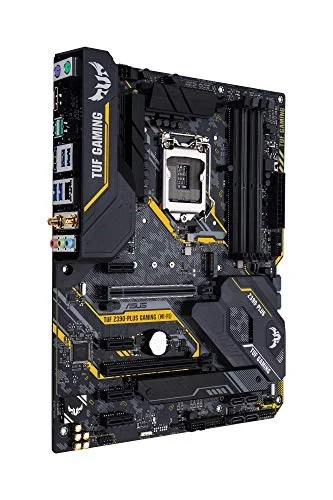

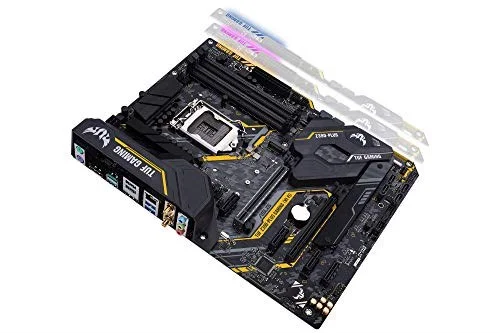

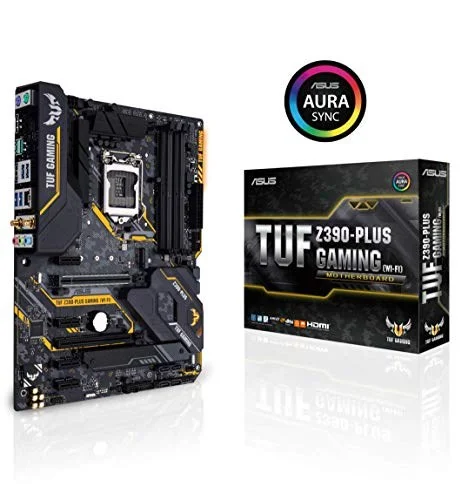

Asus TUF Z390-Plus Gaming (Wi-Fi)

Asus TUF Z390-Plus Gaming (Wi-Fi) LGA1151 ATX DDR4 64 GB Motherboard

Asus Motherboard $192.29

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus TUF Z390-Plus Gaming (Wi-Fi) is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, Gigabit LAN, USB 3.1 Gen2
Military-Grade TUF Components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Gamer’s Guardian with Safe Slot and FanXpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
8-channel HD Gaming Audio with TUF Gaming Headphone featuring Realtek S1200A high definition audio codec driven by Japanese capacitors for warm, immersive sound
ASUS Optimum II improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies

Manufacturer	Asus
Model Number	TUF Z390-Plus Gaming (Wi-Fi)
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF Z390-Plus Gaming (Wi-Fi)
SKU Code	TUF Z390-Plus Gaming (Wi-Fi)
GTIN / EAN	192876126202
