ASUS TUF Z390-Pro Gaming

ASUS TUF Z390-Pro Gaming LGA1151 ATX DDR4 128 GB Motherboard

Asus Motherboard $216.19

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF Z390-Pro Gaming is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).

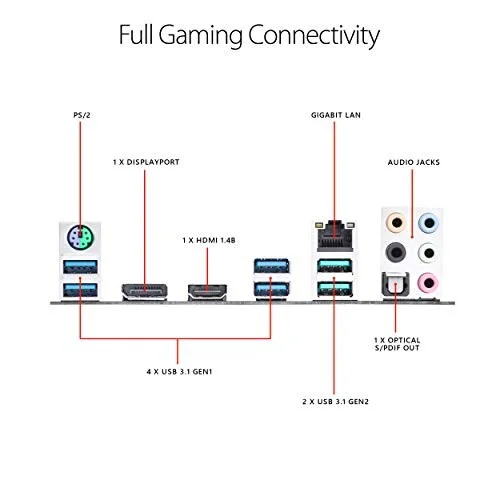

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, Gigabit LAN, USB 3.1 Gen2

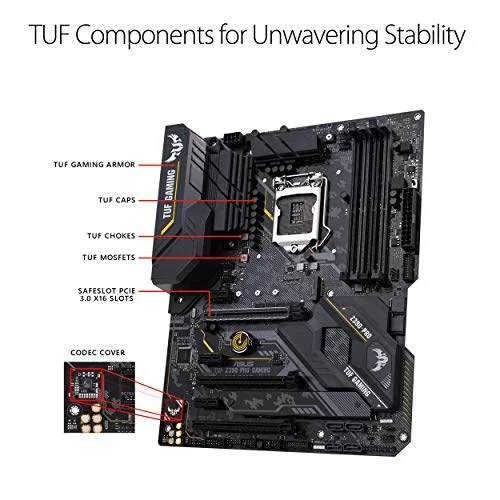

Military-Grade TUF Components like TUF Languid, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Gamer’s Guardian with Safe Slot and Fan Xpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling

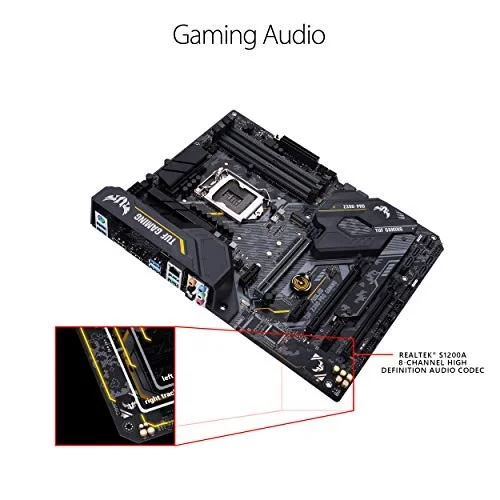

8-channel HD gaming audio featuring Realtek S1200A high definition audio codec driven by Japanese capacitors for warm, immersive sound
ASUS Opti-MEM II improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies

Manufacturer	ASUS
Model Number	TUF Z390-Pro Gaming
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF Z390-Pro Gaming
SKU Code	TUF Z390-Pro Gaming
GTIN / EAN	192876125557
