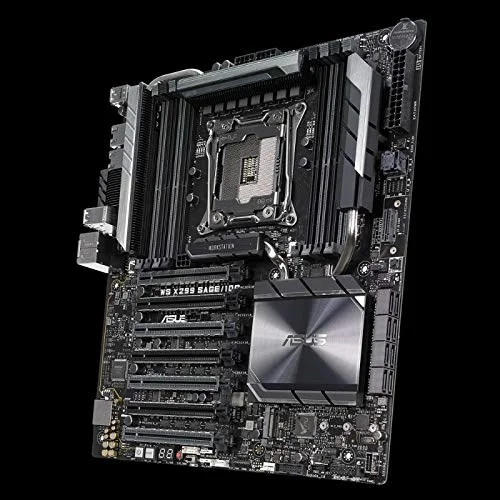

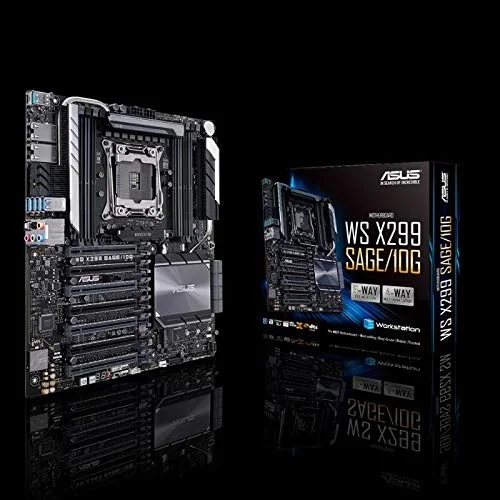

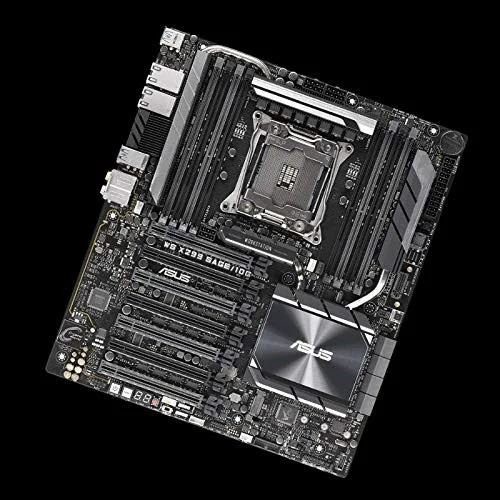

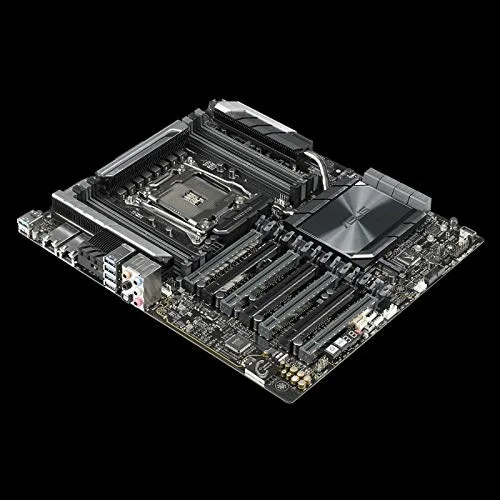

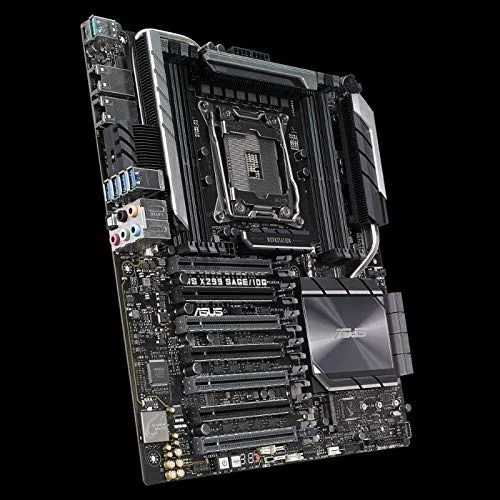

ASUS WS X299 SAGE/10G

ASUS WS X299 SAGE/10G LGA2066 SSI CEB DDR4 128 GB Motherboard

Asus Motherboard $685.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorSSI CEB

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS WS X299 SAGE/10G is a SSI CEB motherboard for LGA2066. It supports DDR4 memory up to 4200 MT/s (OC).

Manufacturer	ASUS
Model Number	WS X299 SAGE/10G 90SW00H0-M0EAY0 90SW00H0-M0AAY0
Launch Date	September 2018
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	SSI CEB
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3600 / DDR4-4000 / DDR4-4133 / DDR4-4200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	7 × PCIe x16
PCIe x16 (Qty)	7
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	WS X299 SAGE/10G
SKU Code	WS X299 SAGE/10G
GTIN / EAN	889349952009
