Biostar Z690A VALKYRIE

Biostar Z690A VALKYRIE LGA1700 ATX DDR4 128 GB Motherboard

Biostar Motherboard $406.5

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

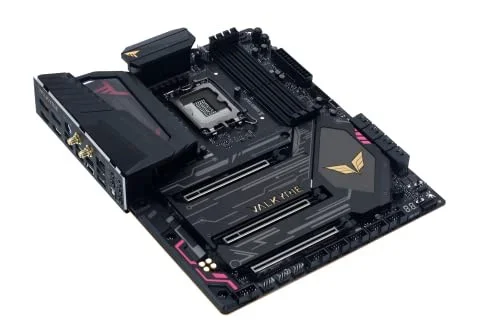

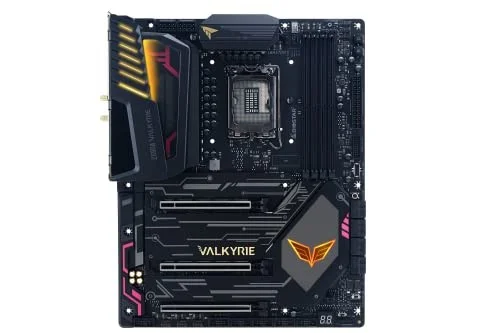

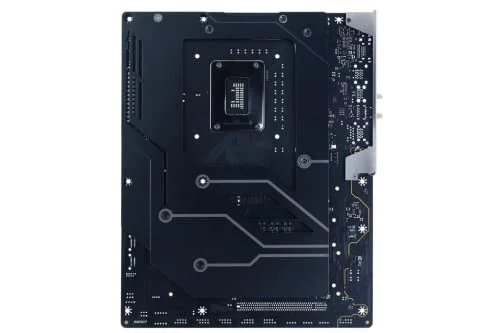

The Biostar Z690A VALKYRIE is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5000 MT/s (OC).

Supports 12Th Generation Intel LGA 1700 Core Processor
Intel Z690 Single Chip Architecture
Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000/ 3866/ 3800/ 3733/ 3600/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 Up To 128 GB Memory
Supports Pcie 5.0
Supports Pcie M.2 (64Gb/S)
Supports Intel Optane Technology
Supports Display Port 5K
Supports 2.5 Gbe LAN
Supports USB 3.2 Gen2x2 Type C
Supports Wifi 6E Module (No Wifi 6E Card Included)

Manufacturer	Biostar
Model Number	Z690A VALKYRIE
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z690A VALKYRIE
SKU Code	Z690A VALKYRIE
GTIN / EAN	690124289650
