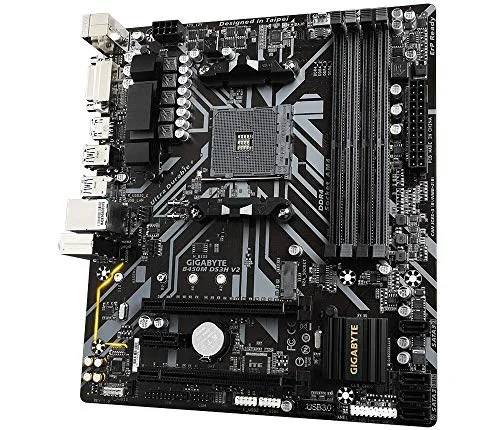

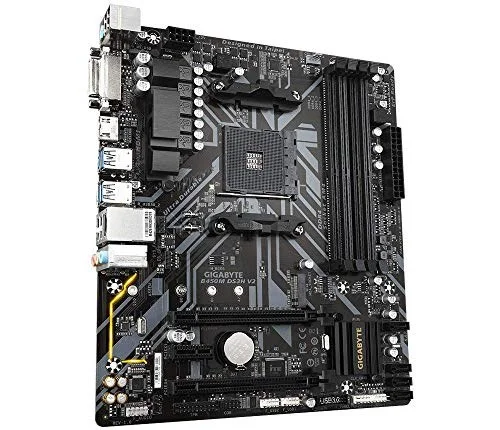

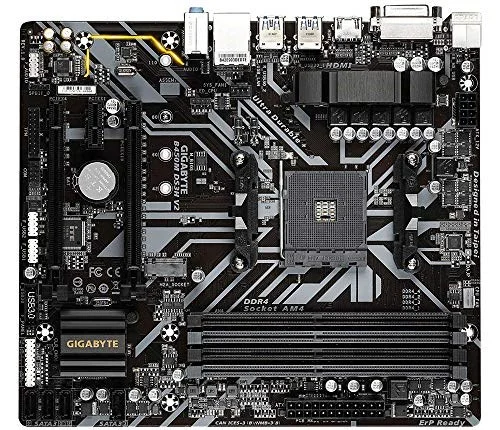

GIGABYTE B450M DS3H V2

GIGABYTE B450M DS3H V2 AM4 Micro-ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $49.87

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE B450M DS3H V2 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3600 MT/s (OC).

Supports AMD 3Rd Gen Ryzen/ 2Nd Gen Ryzen/ 1St Gen Ryzen/ 2Nd Gen Ryzen With Radeon Vega Graphics/ 1St Gen Ryzen With Radeon Vega Graphics/ Athlon With Radeon Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
Feature Digital VRM Solution With Low RDS(On) Mosfets
HDMI, DVI-D Ports For Multiple Display
Ultra-Fast Pcie Gen3 X4 M.2 With Pcie Nvme & SATA Mode Support
High Quality Audio Capacitors And Audio Noise Guard With LED Trace Path Lighting
GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
RGB Fusion Supports RGB LED Strips In 7-Colors
Smart Fan 5 Features 5 Temperature Sensors And 2 Hybrid Fan Headers With FAN STOP
APP Center Including Easytune And Cloud Station Utilities

Manufacturer	Gigabyte
Model Number	B450M DS3H V2
Launch Date	September 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M DS3H V2
SKU Code	B450M DS3H V2
GTIN / EAN	889523024393
