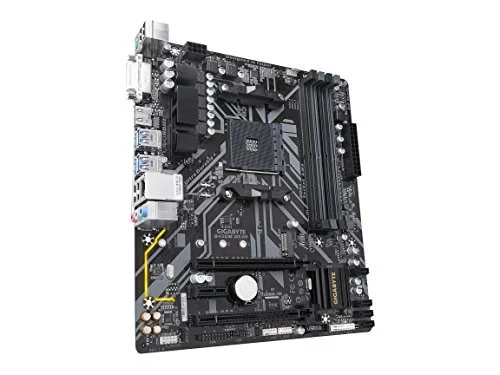

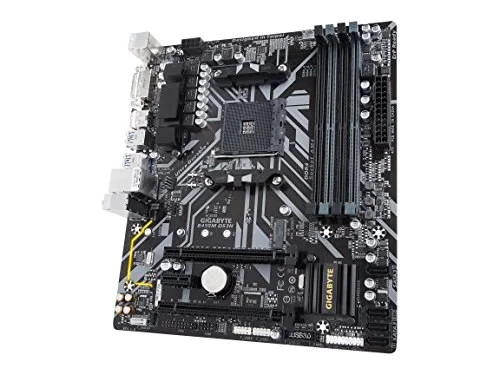

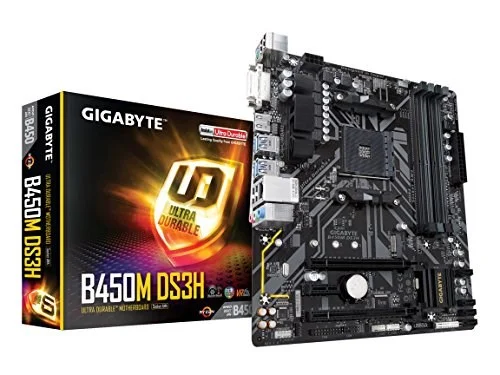

Gigabyte B450M DS3H

Gigabyte B450M DS3H AM4 Micro-ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $83.19

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte B450M DS3H is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3600 MT/s (OC).

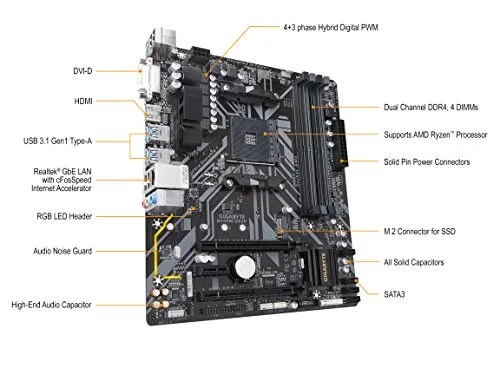

Supports AMD 1st & 2nd Generation Ryzen/ Ryzen with Radeon Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
HDMI, DVI-D Ports for Multiple Display
PCIe Gen3 M.2 NVMe
High Quality Audio Capacitors and Audio Noise Guard
RGB Fusion supports RGB LED Strips in 7-Colors
Realtek Gigabit LAN
Smart Fan 5 with FAN STOP
CEC 2019 Ready

Manufacturer	Gigabyte
Model Number	B450M DS3H
Launch Date	July 2018
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M DS3H
SKU Code	B450M DS3H
GTIN / EAN	889523014196
