Gigabyte B450M S2H

Gigabyte B450M S2H AM4 Micro-ATX DDR4 32 GB Motherboard

Gigabyte Motherboard $55.74

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte B450M S2H is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3600 MT/s (OC).

Supports AMD Ryzen 2Nd Generation/Ryzen With Radeon Vega Graphics/Athlon With Radeon Vega Graphics/Ryzen 1St Generation Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 Dimms

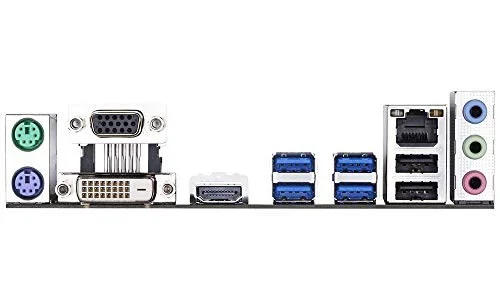

HDMI, DVI-D, D-Sub Ports For Multiple Display
Ultra-Fast Pcie Gen3 X4 M.2 With Pcie Nvme And SATA Mode Support
GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management

Manufacturer	Gigabyte
Model Number	B450M S2H
Launch Date	January 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2933 / DDR4-3466 / DDR4-3600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M S2H
SKU Code	B450M S2H
GTIN / EAN	4719331804961
