Gigabyte B460M GAMING HD

Gigabyte B460M GAMING HD LGA1200 Micro-ATX DDR4 64 GB Motherboard

Gigabyte Motherboard $128.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB460

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

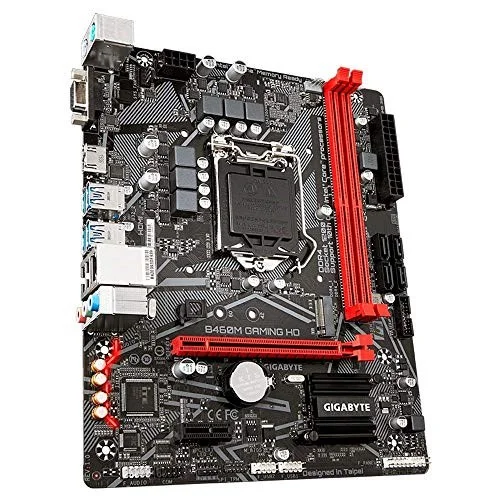

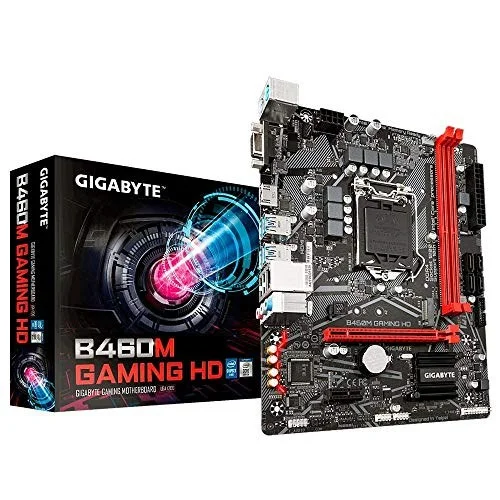

The Gigabyte B460M GAMING HD is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).

Supports 10Th Gen Intel Core Processors.
Dual Channel Non-ECC Unbuffered DDR4, 2 Dimms.
High Quality Audio Capacitors And Audio Noise Guard With LED Trace Path Lighting.
Ultra-Fast M.2 With Pcie Gen3 X4 & SATA Interface.
GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management.

Manufacturer	Gigabyte
Model Number	B460M GAMING HD
Launch Date	July 2020
CPU Socket	LGA1200
Chipset Model	Intel B460
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B460M GAMING HD
SKU Code	B460M GAMING HD
GTIN / EAN	889523022412
