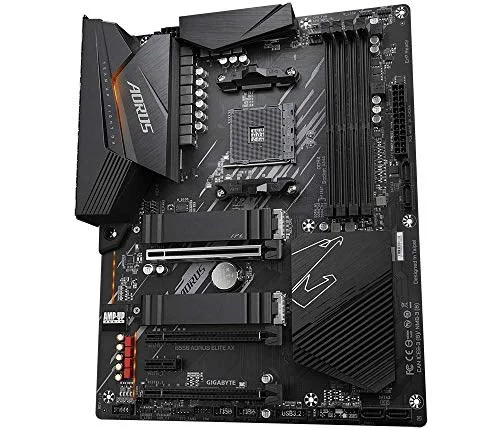

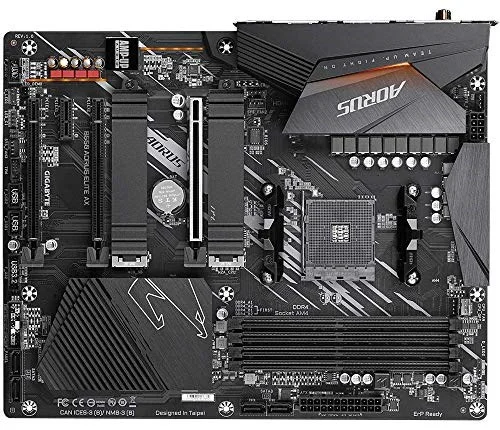

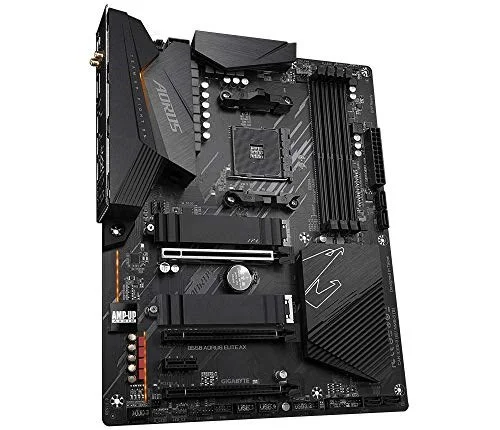

Gigabyte B550 AORUS Elite AX

Gigabyte B550 AORUS Elite AX AM4 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $161.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte B550 AORUS Elite AX is a ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).

Manufacturer	Gigabyte
Model Number	B550 AORUS Elite AX
Launch Date	August 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 / DDR4-4733 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

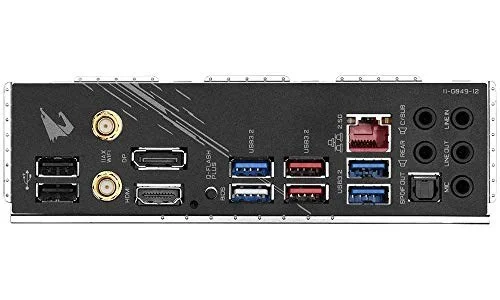

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B550 AORUS Elite AX
SKU Code	B550 AORUS Elite AX
GTIN / EAN	889523023822
