Product Overview

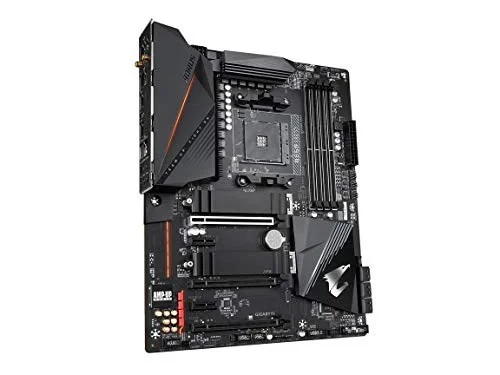

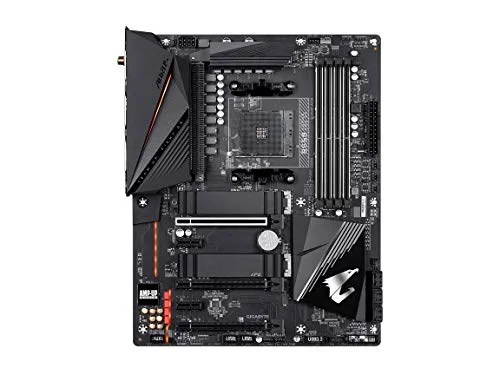

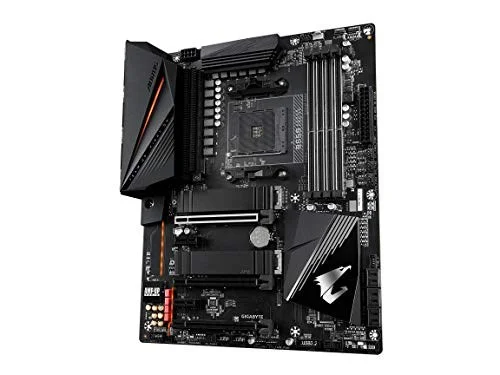

Gigabyte B550 AORUS PRO AC

Gigabyte B550 AORUS PRO AC AM4 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $199.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4
ChipsetB550
Form FactorATX
MemoryDDR4
Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller Shipping Price
-
N/A Visit Store
-
N/A
-
N/A
-
N/A

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The Gigabyte B550 AORUS PRO AC is a ATX motherboard for AM4. It supports DDR4 memory up to 5000 MT/s (OC).

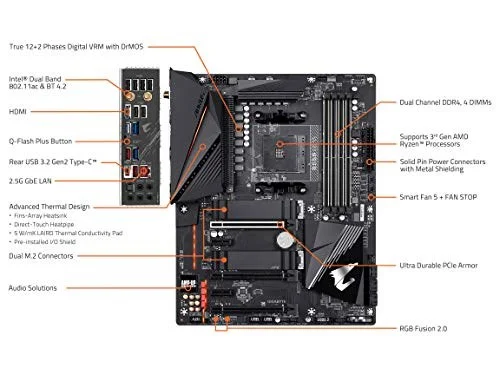

  • Supports 3Rd Gen AMD Ryzen Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
  • True 12+2 Phases Digital VRM Solution With 50A Drmos
  • Advanced Thermal Design With Fins-Array Heatsink And Direct Touch Heatpipe
  • Ultra Durable Pcie 4. 0 Ready X16 Slot
  • Dual Ultra-Fast Nvme Pcie 4. 0/3. 0 X4 M. 2 With Thermal Guards
  • Onboard Intel Dual Band 802. 11Ac & BT 4. 2 Wireless With AORUS Antenna
  • AMP-UP Audio With ALC1220-VB And WIMA Capacitors For Rear 120Db SNR
  • Blazing Fast 2. 5Gbe LAN With Bandwidth Management
  • USB 3. 2 Gen2 Type-C & HDMI Support

Specifications

Manufacturer Gigabyte
Model Number B550 AORUS PRO AC
Launch Date June 2020
CPU Socket AMD Socket AM4
Chipset Model Intel B550
Board Size / Form Factor ATX
Supported Memory Type DDR4
DIMM Slots 4
Maximum RAM Capacity 128 GB
Valid DDR4 Speeds DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 / DDR4-4866 / DDR4-5000 (OC)
ECC Memory Support Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe) 3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty) 3
PCIe x4 (Qty) 0
PCIe x1 (Qty) 2
M.2 Slot Count 2 × M.2
M.2 Device Compatibility 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports 6 × SATA 6Gbps
SATA Express Ports 0
Wired Networking (LAN) GbE LAN
Onboard Wi-Fi Yes
Wi-Fi Standard 5
Rear-Panel USB USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers 0
Internal USB 3.2 Gen 2 Headers 0
Internal USB 3.2 Gen 1 Headers 1
Internal USB 2.0 Headers 2
NVIDIA SLI No
AMD CrossFire No
RAID Capability Yes
Back-Connect Layout No
Manufacturer Part Number (MPN) B550 AORUS PRO AC
SKU Code B550 AORUS PRO AC
GTIN / EAN 889523022856
