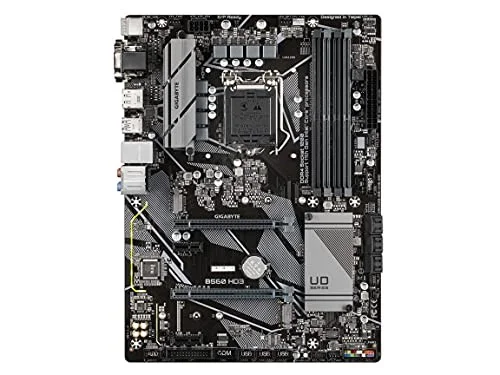

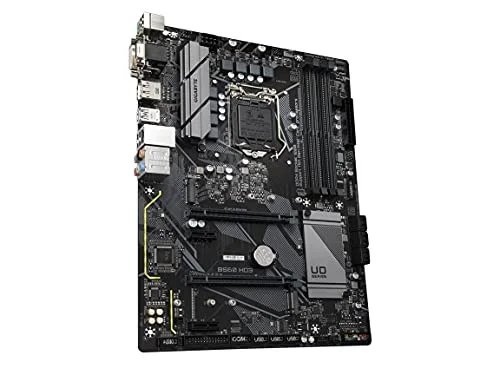

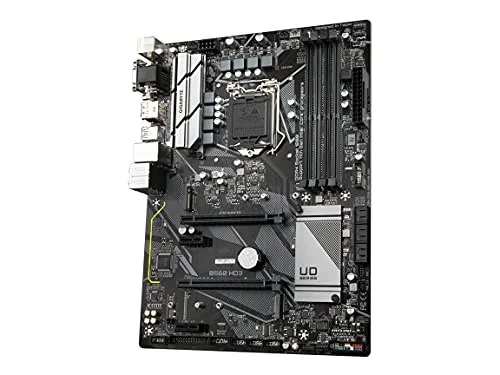

Gigabyte B560 HD3

Gigabyte B560 HD3 LGA1200 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $99.95

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB560

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte B560 HD3 is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).

Intel B560
Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium / Celeron processors*
- Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
DDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core i9 / i7 / i5 processors)
DDR4 2933 / 2666 / 2400 / 2133 (10th Gen Intel Core i9 / i7 processors)
DDR4 2666 / 2400 / 2133 (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)

Manufacturer	Gigabyte
Model Number	B560 HD3
Launch Date	N/A
CPU Socket	LGA1200
Chipset Model	Intel B560
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B560 HD3
SKU Code	B560 HD3
GTIN / EAN	4719331815509
