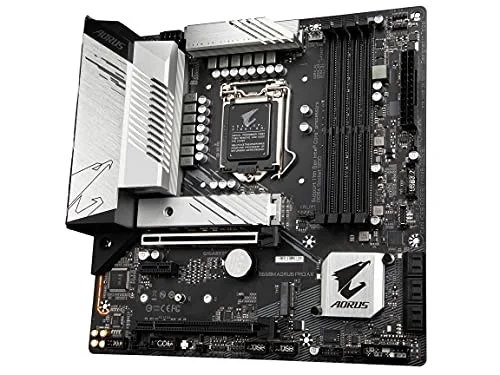

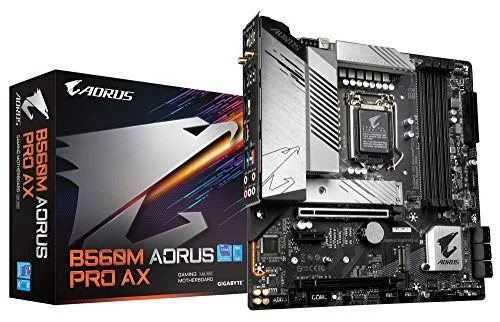

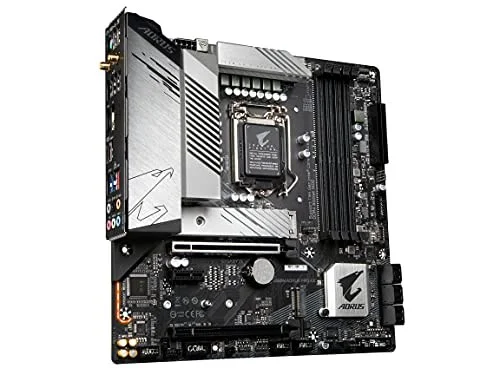

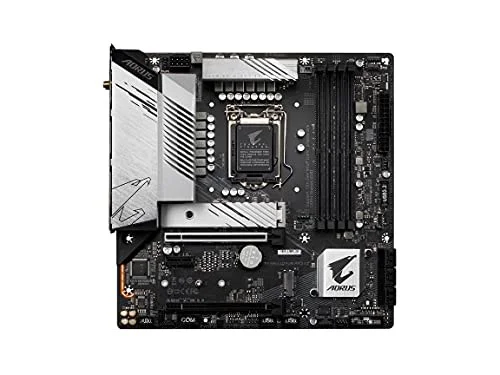

GIGABYTE B560M AORUS PRO AX

GIGABYTE B560M AORUS PRO AX LGA1200 Micro-ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $110.8

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB560

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE B560M AORUS PRO AX is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 3200 MT/s (OC).

Intel B560 Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors

Manufacturer	GIGABYTE
Model Number	B560M AORUS PRO AX
Launch Date	March 2021
CPU Socket	LGA1200
Chipset Model	Intel B560
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key (Intel 11th Gen only), 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B560M AORUS PRO AX
SKU Code	B560M AORUS PRO AX
GTIN / EAN	889523027226
