Gigabyte B650 AORUS ELITE AX V2

Gigabyte B650 AORUS ELITE AX V2 AM5 ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $153.95

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

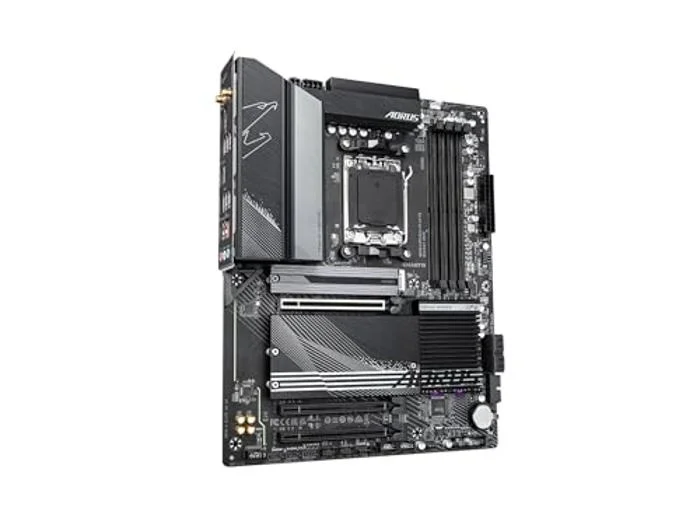

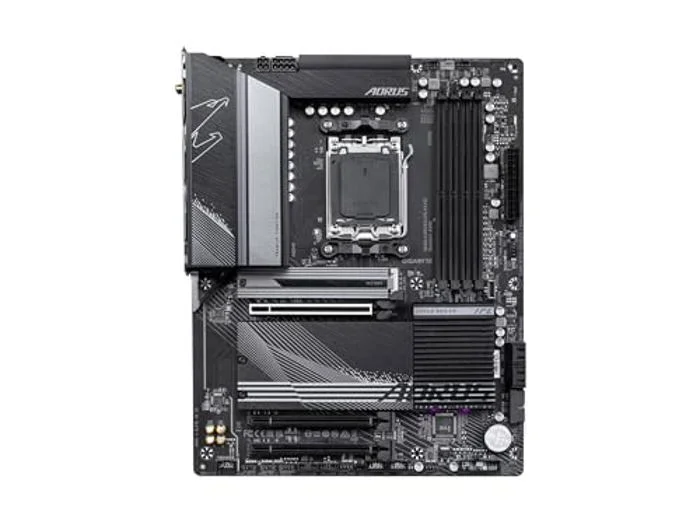

The Gigabyte B650 AORUS ELITE AX V2 is a ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).

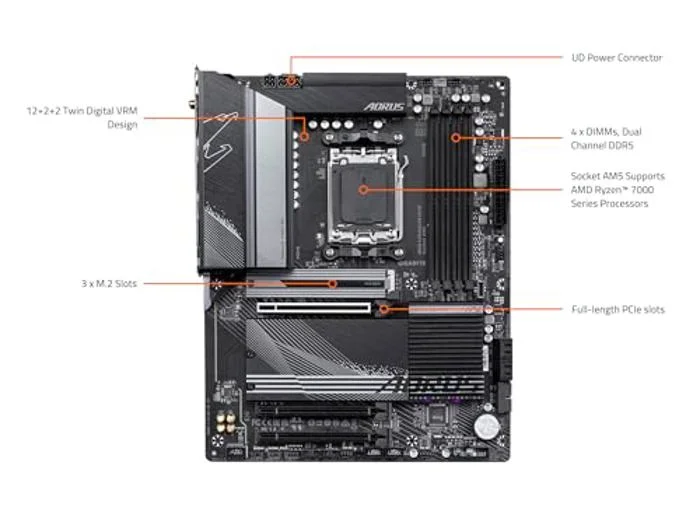

AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
Superfast Storage：1PCIe 5.0 x4 and 2PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E

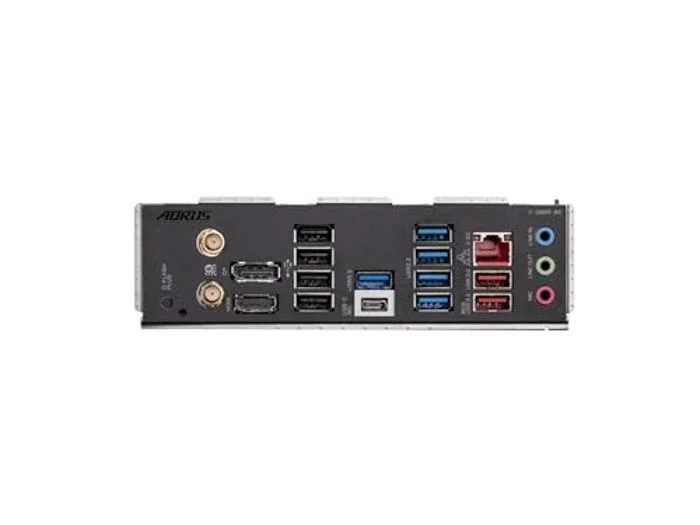

Extended Connectivity：HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Manufacturer	Gigabyte
Model Number	B650 AORUS ELITE AX V2
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6666 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 25110 - M Key, 2280 / 25110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650 AORUS ELITE AX V2
SKU Code	B650 AORUS ELITE AX V2
GTIN / EAN	889523039984
