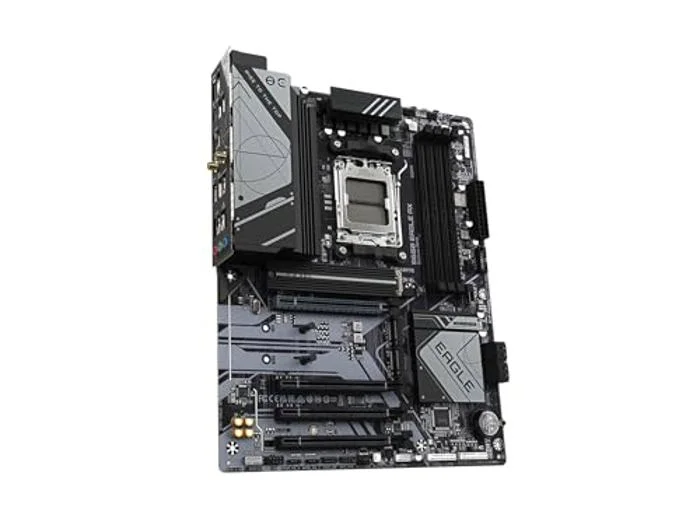

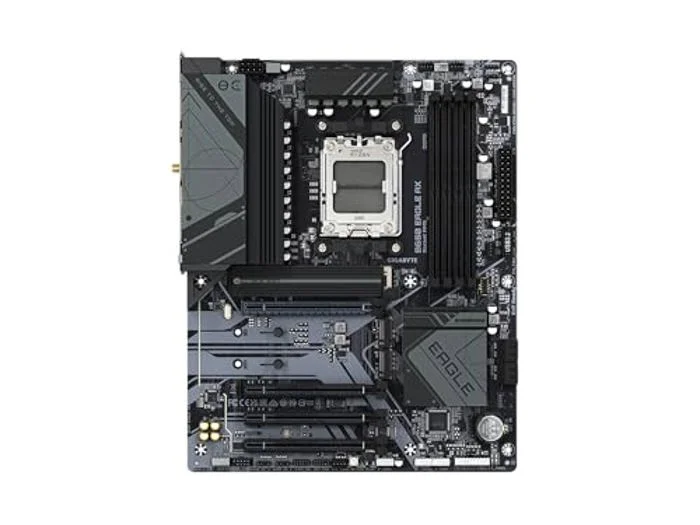

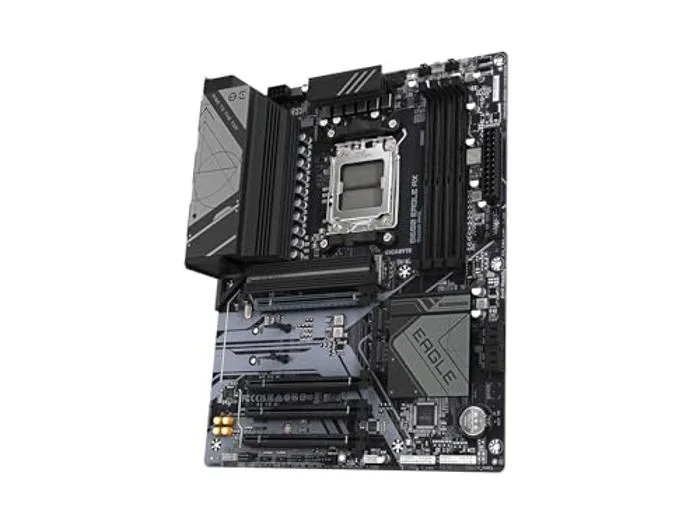

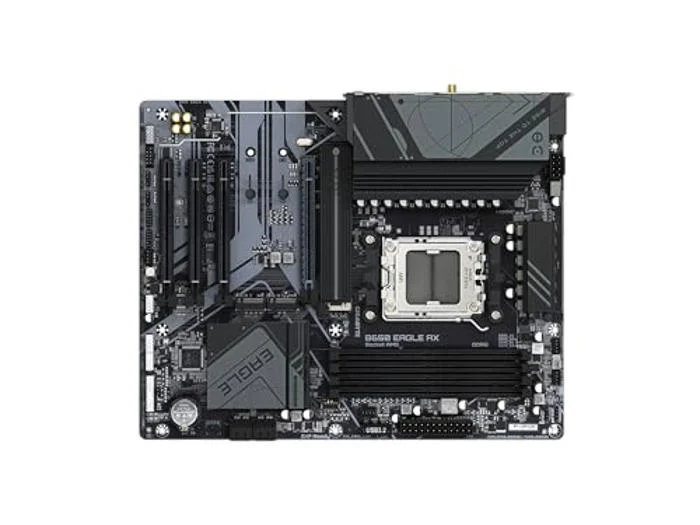

GIGABYTE B650 Eagle AX

GIGABYTE B650 Eagle AX AM5 ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $158.73

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE B650 Eagle AX is a ATX motherboard for AM5. It supports DDR5 memory up to 7600 MT/s (OC).

AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Unparalleled Performance: 12+2+2 Phases Digital VRM Solution
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
Stable Connectivity: 1PCIe 5.0 + 2PCIe 4.0 M.2, USB 3.2 Gen 2x2 Type-C

Manufacturer	GIGABYTE
Model Number	B650 EAGLE AX B650 EAGLE AX 1.0
Launch Date	January 2024
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650 EAGLE AX
SKU Code	B650 EAGLE AX
GTIN / EAN	889523041703
