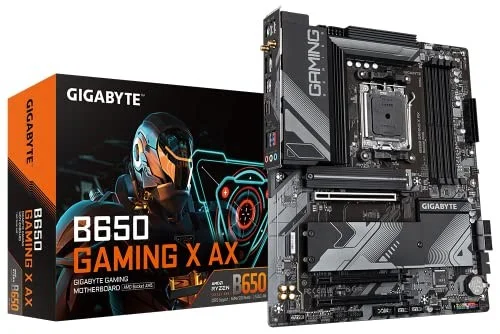

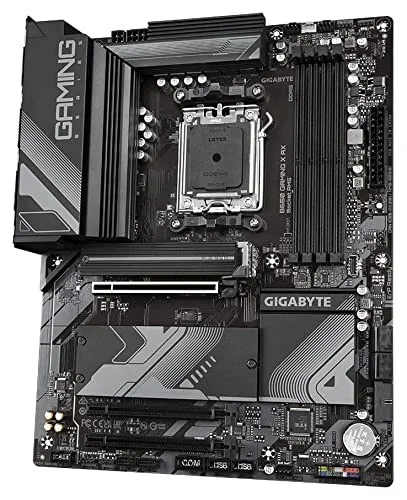

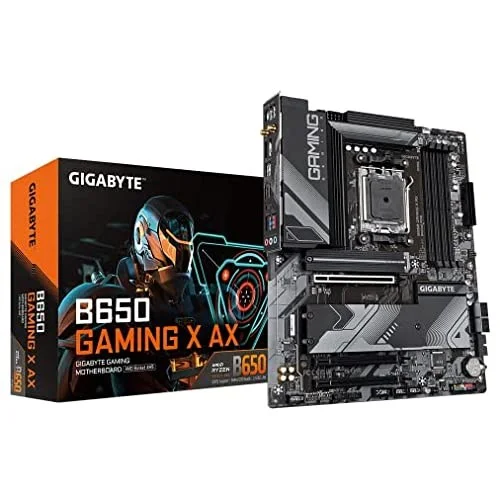

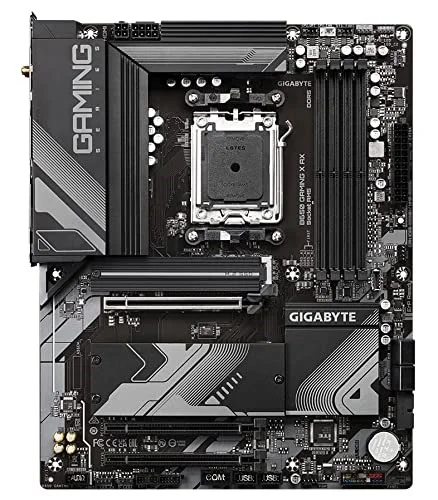

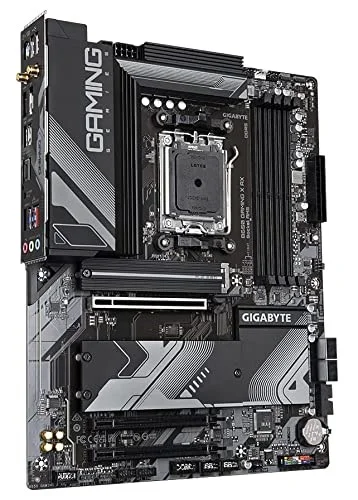

Gigabyte B650 GAMING X AX

Gigabyte B650 GAMING X AX AM5 ATX DDR5 128 GB Motherboard

Gigabyte Motherboard $134.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte B650 GAMING X AX is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance：Direct 8+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
PCIe x16 EZ-Latch with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Manufacturer	Gigabyte
Model Number	B650 GAMING X AX
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 25110 - M Key, 2280 / 25110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650 GAMING X AX
SKU Code	B650 GAMING X AX
GTIN / EAN	4719331849849
