GIGABYTE B650 UD AX

GIGABYTE B650 UD AX AM5 ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $169.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

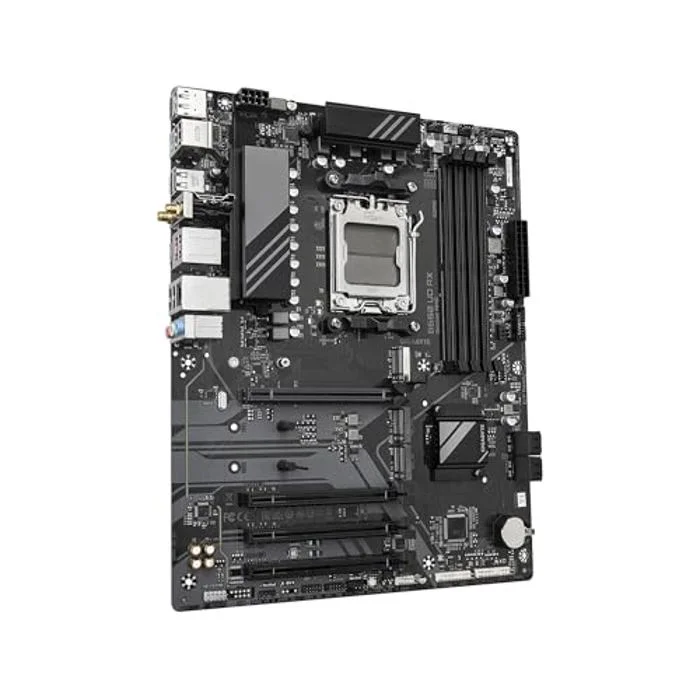

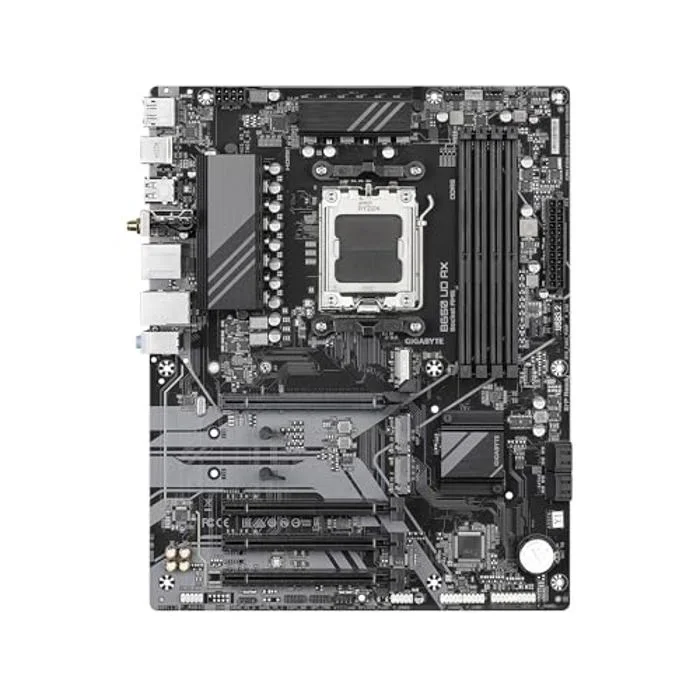

The GIGABYTE B650 UD AX is a ATX motherboard for AM5. It supports DDR5 memory up to 7600 MT/s (OC).

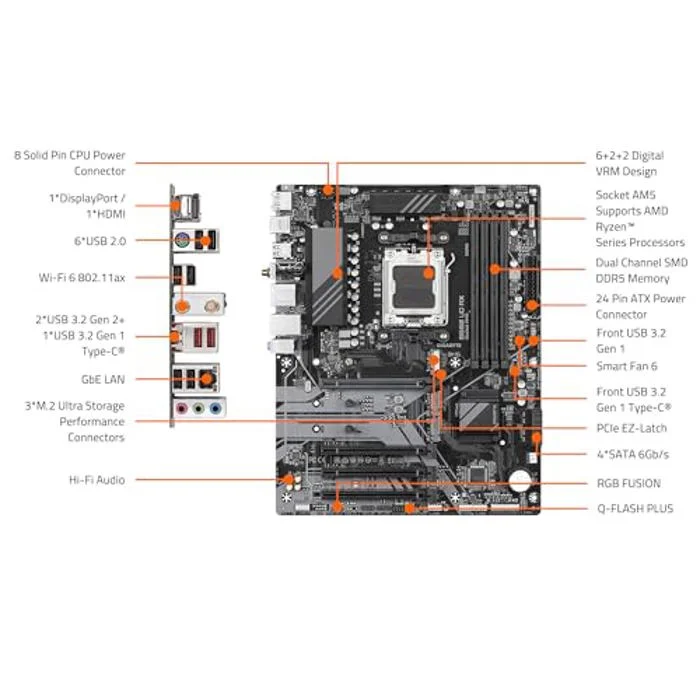

AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Sturdy Power Design: 6+2+2 Phases Digital VRM Solution
Stable Connectivity: 2*PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
Fast Networking: GbE LAN, Wi-Fi 6
Fine Tuning Features: Smart Fan 6, Q-Flash

Manufacturer	GIGABYTE
Model Number	B650 UD AX (rev. 1.0) B650 UD AX
Launch Date	July 2024
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key
SATA III Ports	0 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

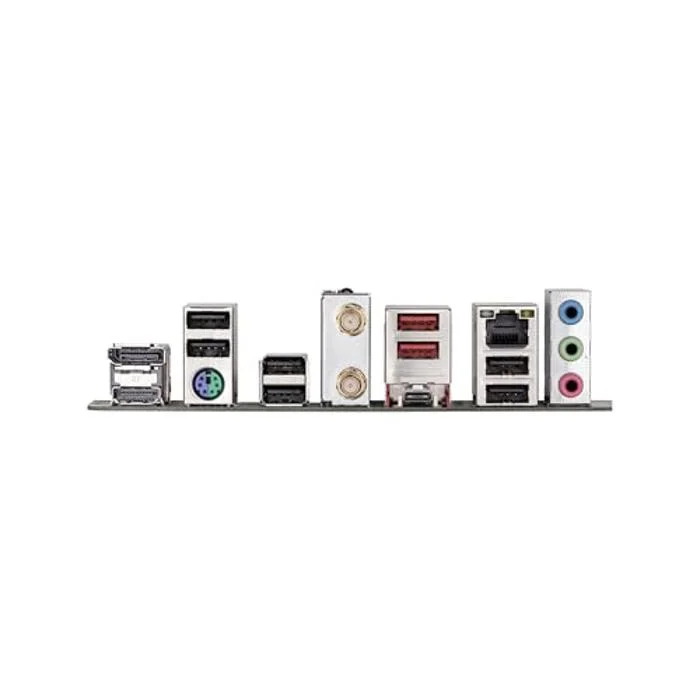

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650 UD AX (rev. 1.0)
SKU Code	B650 UD AX (rev. 1.0)
GTIN / EAN	889523044278
