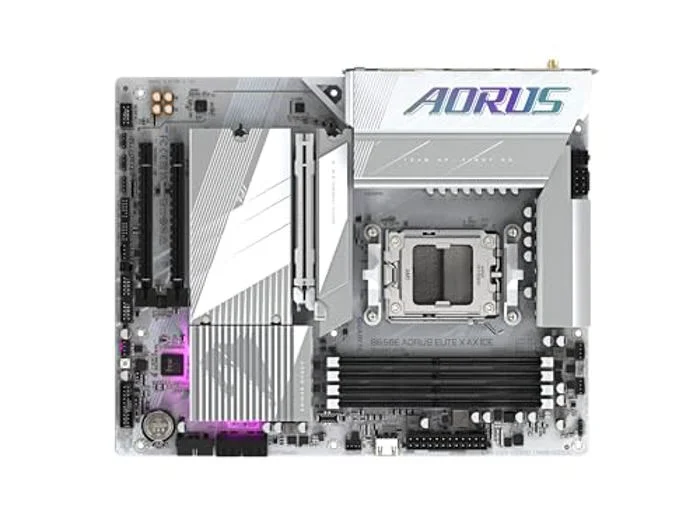

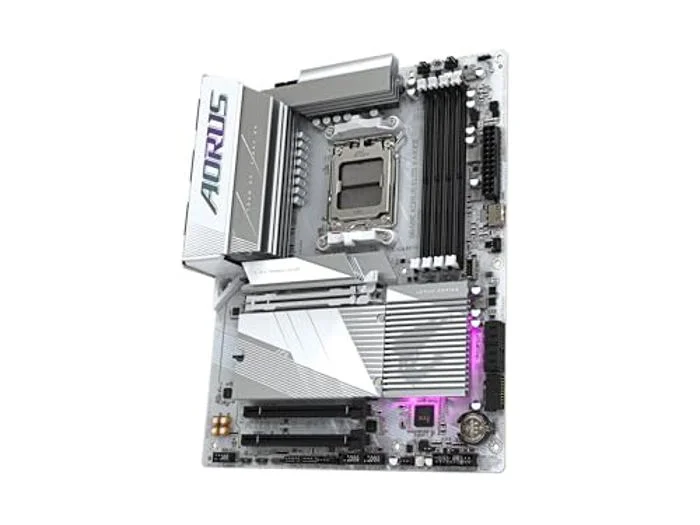

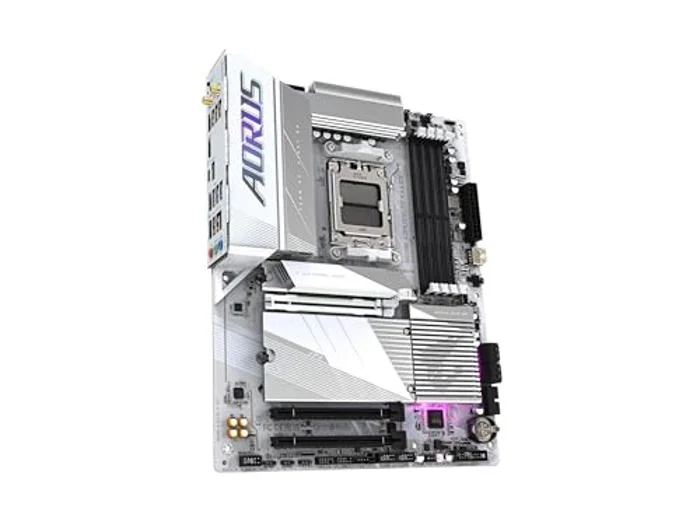

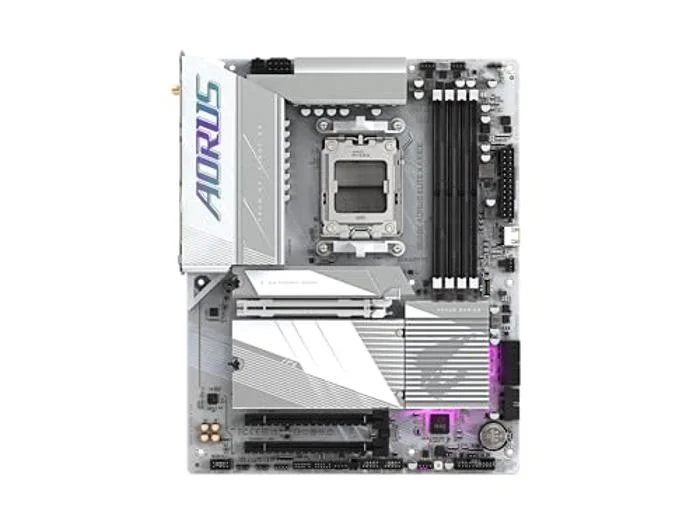

GIGABYTE B650E AORUS Elite X AX ICE

GIGABYTE B650E AORUS Elite X AX ICE AM5 ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $199.95

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650E

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE B650E AORUS Elite X AX ICE is a ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).

AMD AM5 Socket: Supports AMD Ryzen 8000 and 7000 Series Processors
DDR5 Compatible: 4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
Commanding Power Design: Twin 12+2+2 Phases Digital VRM Solution, 6-Layer 2X Copper PCB
Cutting-Edge Thermal Design: M.2 Thermal Guard XL, VRM Thermal Armor
Next Gen Connectivity: PCIe 5.0, 3x M.2, Dual USB-C, BT 5.3

Manufacturer	GIGABYTE
Model Number	B650E AORUS ELITE X AX ICE
Launch Date	January 2024
CPU Socket	AM5
Chipset Model	Intel B650E
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6666 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

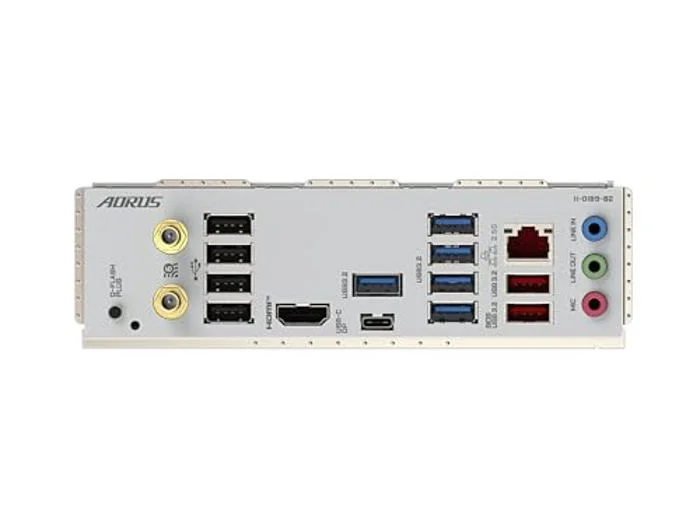

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650E AORUS ELITE X AX ICE
SKU Code	B650E AORUS ELITE X AX ICE
GTIN / EAN	889523041895
