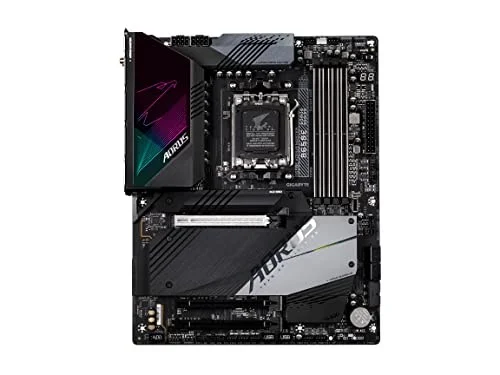

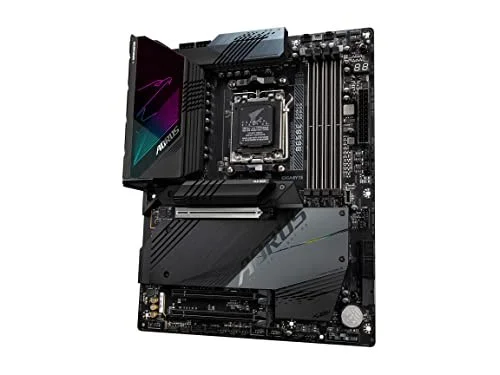

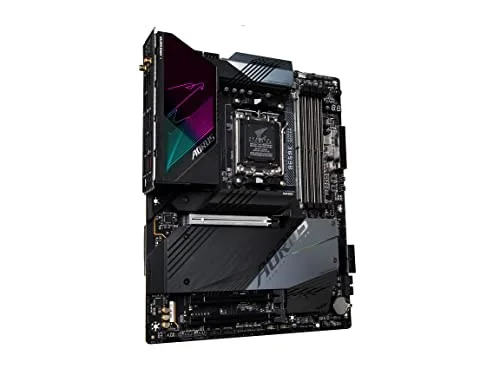

GIGABYTE B650E AORUS Master

GIGABYTE B650E AORUS Master AM5 ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $349.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650E

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE B650E AORUS Master is a ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

5-Year Warranty
AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
DDR5 Compatible: 4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
Commanding Power Design: Twin 16+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB
Cutting-Edge Thermal Design: 8mm Mega-Heatpipe, M.2 Thermal Guard III, PCIe Ultra Durable Armor, NanoCarbon Aluminum Backplate
Next Gen Connectivity: PCIe 5.0, Quad NVMe x4 M.2, Dual USB-C, BT 5.2
EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design
Fast Networking: Intel 2.5GbE LAN, AMD WiFi 6E 802.11ax
Dynamic Audio: ALC1220 CODEC and ESS SABRE Hi-Fi 9118 DAC
Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU

Manufacturer	Gigabyte
Model Number	B650E AORUS MASTER
Launch Date	October 2022
CPU Socket	AM5
Chipset Model	Intel B650E
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

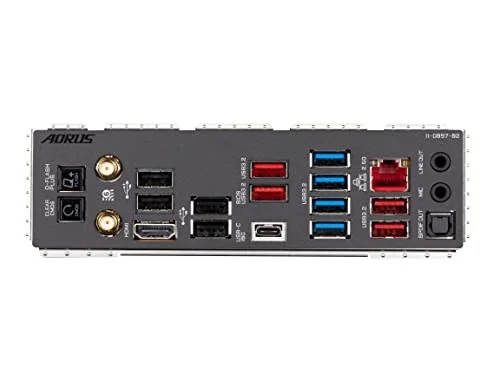

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650E AORUS MASTER
SKU Code	B650E AORUS MASTER
GTIN / EAN	889523033609
