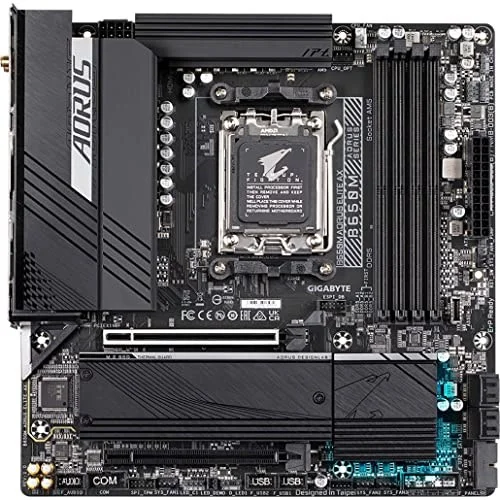

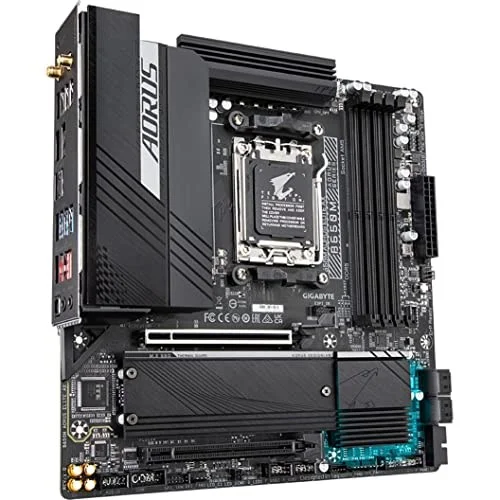

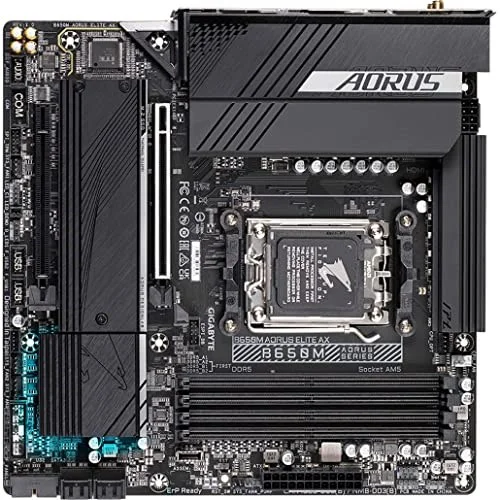

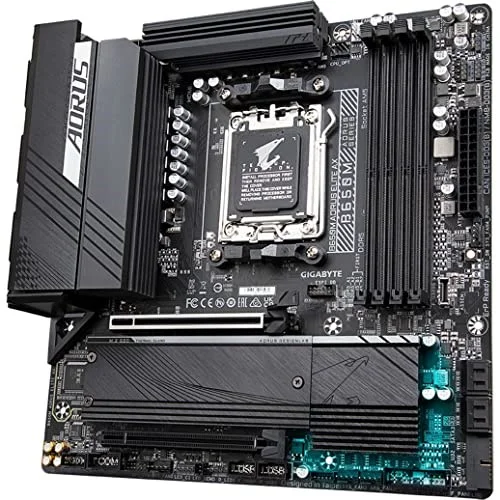

Gigabyte B650M AORUS ELITE AX

Gigabyte B650M AORUS ELITE AX AM5 Micro-ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $162.45

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller	Shipping	Price
	-	N/A
	-	N/A
	-	N/A
	£42.52	N/A Visit Store

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The Gigabyte B650M AORUS ELITE AX is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

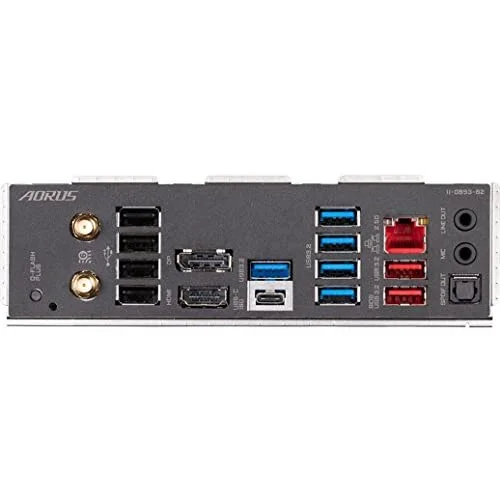

CPUAMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD B650Memory4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6600MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz1 x DisplayPortPCI SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsCPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:4 x SATA 6Gb/s connectorsNetworking1 x 2.5Gb Ethernet WIFI 6EBluetoothAudioRealtek CODECConnectivity1 x Q-Flash Plus button1 x DisplayPort1 x HDMI 2.0 port1 x USB Type-C port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksInternal Ports1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumperForm FactorMicro ATX Form Factor; 24.4cm x 24.4cm

Specifications

Manufacturer	Gigabyte
Model Number	B650M AORUS ELITE AX B650M AORUS ELITE AX (rev.1.x)
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650M AORUS ELITE AX
SKU Code	B650M AORUS ELITE AX
GTIN / EAN	889523033784
