GIGABYTE B650M K

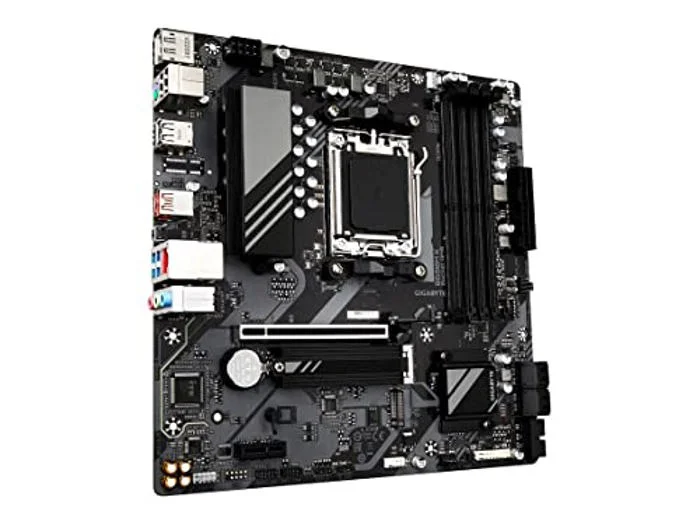

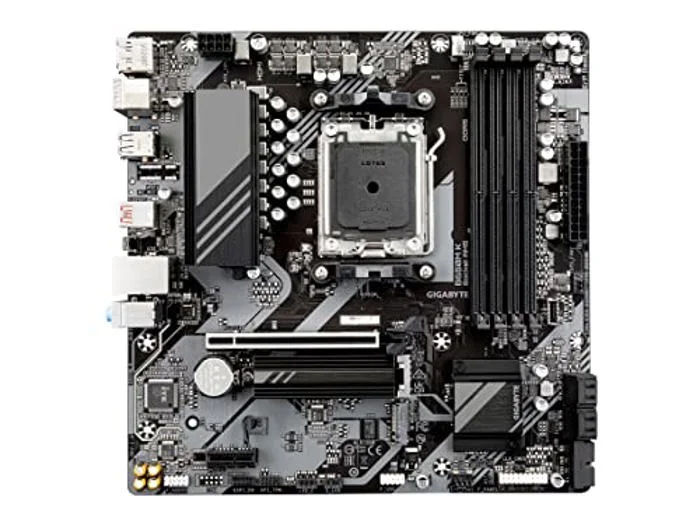

GIGABYTE B650M K AM5 Micro-ATX DDR5 128 GB Motherboard

Gigabyte Motherboard $119.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE B650M K is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
5-Year Warranty
DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Sturdy Power Design: Direct 8+2+1 Phases Digital VRM Solution
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
Stable Connectivity: 2*PCIe 4.0 x4 M.2, USB 3.2 Gen 2 Type-C
Fast Networking: 2.5GbE LAN
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Manufacturer	Gigabyte
Model Number	B650M K
Launch Date	March 2023
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2580 - M Key, 2280 / 25110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650M K
SKU Code	B650M K
GTIN / EAN	889523036969
