GIGABYTE B660M DS3H AX DDR4

GIGABYTE B660M DS3H AX DDR4 LGA1700 Micro-ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $115.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

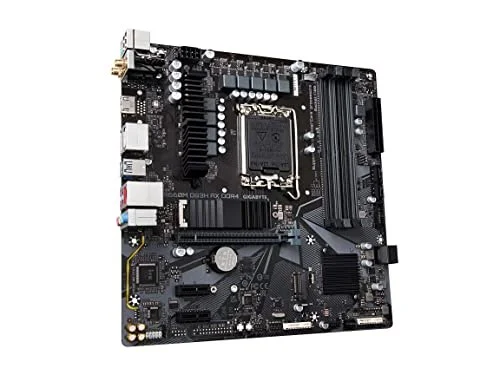

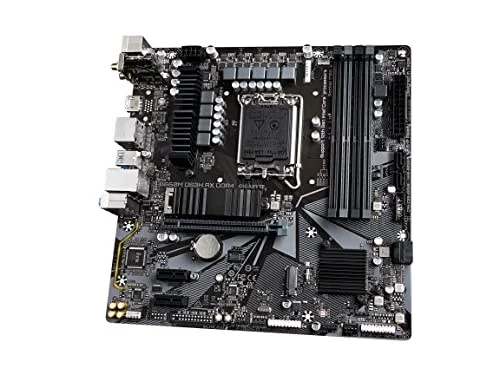

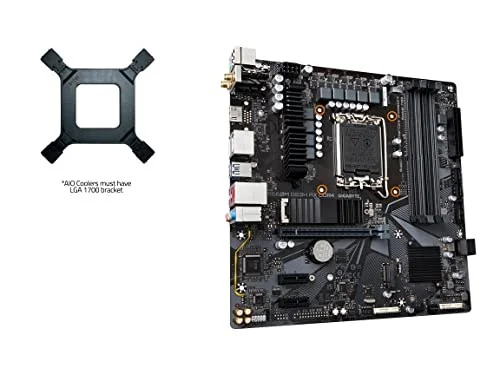

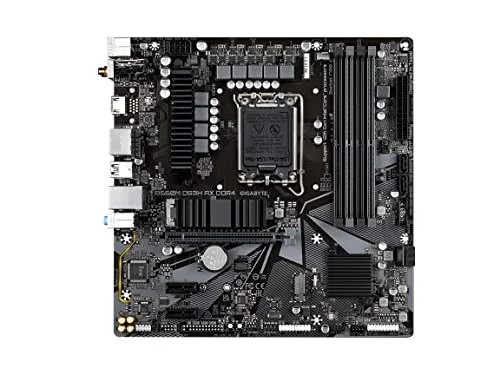

The GIGABYTE B660M DS3H AX DDR4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).

Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
Sturdy Power Design: 6+2+1 Phases Hybrid Power Design, Premium Choke and Capacitors, 8-pin Solid Pin CPU Power Connector
Comprehensive Thermal Design: M.2 Thermal Guard
Next Gen Connectivity: PCIe 4.0, Dual NVME PCIe 4.0 x4 M.2, USB 3.2 Gen2 Type-C, HDMI 2.0,
Fast Networking: 2.5GbE LAN, WiFi 6 802.11ax
Dynamic Audio: High-End Audio Capacitors, Audio Noise Guard
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Manufacturer	Gigabyte
Model Number	B660M DS3H AX DDR4
Launch Date	January 2022
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B660M DS3H AX DDR4
SKU Code	B660M DS3H AX DDR4
GTIN / EAN	889523030622
