Gigabyte B660M GAMING X AX DDR4

Gigabyte B660M GAMING X AX DDR4 LGA1700 Micro-ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $144.98

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

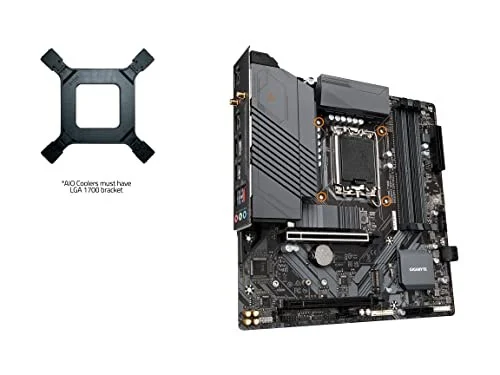

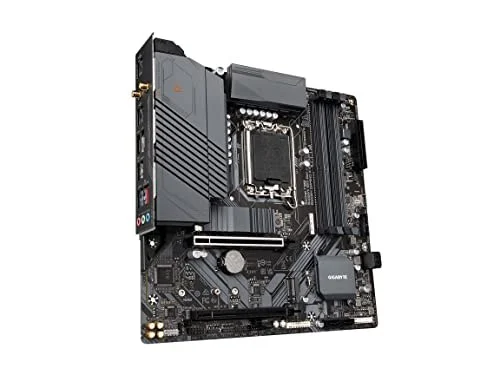

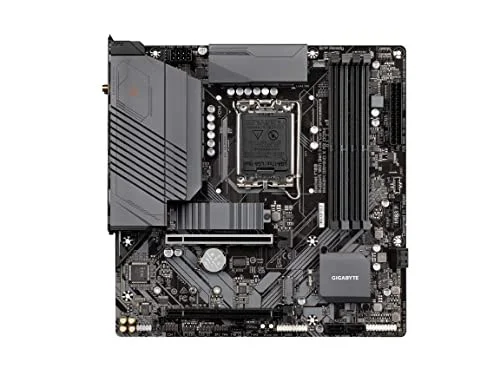

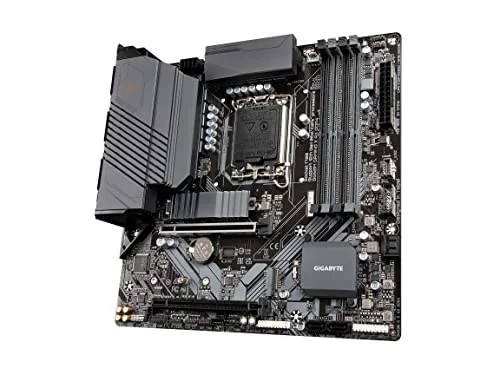

The Gigabyte B660M GAMING X AX DDR4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4400 MT/s (OC).

Intel LGA 1700 Socket: Supports 12Th Gen Intel Core Series Processors
DDR4 Compatible: Dual Channel DDR4, 4 Dimms
Sturdy Power Design: 8+1+1 Hybrid Digital VRM Design, Premium Choke And Capacitors, 8-Pin Solid Pin CPU Power Connector
Comprehensive Thermal Design: Fully Covered Thermal Design, High Coverage VRM MOSFET Heatsinks, M.2 Thermal Guard
Next Gen Connectivity: Pcie 4.0, Dual NVME Pcie 4.0 X4 M.2, USB 3.2 Gen2 Type-C, HDMI 2.0,

Manufacturer	Gigabyte
Model Number	B660M GAMING X AX DDR4 B660M GAMING X AX DDR4 (rev. 1.1)
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B660M GAMING X AX DDR4
SKU Code	B660M GAMING X AX DDR4
GTIN / EAN	889523031452
