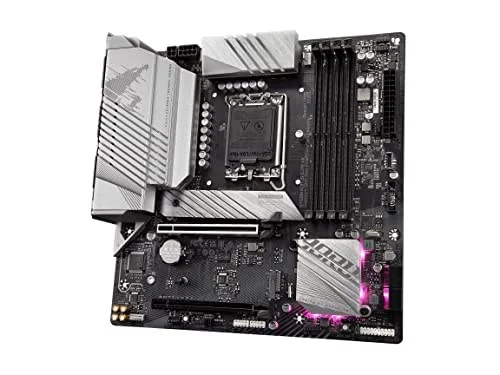

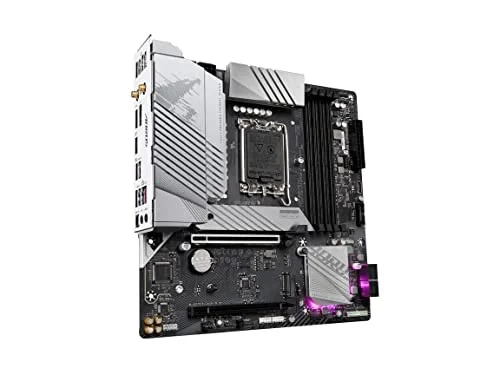

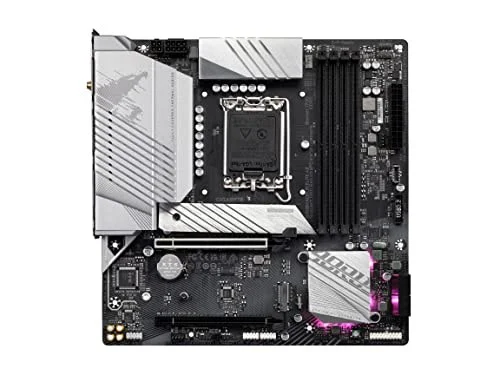

Gigabyte B760M AORUS ELITE AX

Gigabyte B760M AORUS ELITE AX LGA1700 Micro-ATX DDR5 128 GB Motherboard

Gigabyte Motherboard $144.95

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB760

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte B760M AORUS ELITE AX is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7600 MT/s (OC).

GIGABYTE B760M AORUS ELITE AX LGA 1700 Intel B760 M-ATX Motherboard with DDR5, Dual M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch Memory Standard: Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules Number of Memory Slots: 4x288pin (DDR5) PCI Express 4.0 x16: 2 x PCI Express 4.0 x16 Max LAN Speed: 2.5Gbps CPU Type: Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) Maximum Memory Supported: 128GB Channel Supported: Dual Channel M.2: 2 x M.2

Manufacturer	Gigabyte
Model Number	B760M AORUS ELITE AX
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B760
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B760M AORUS ELITE AX
SKU Code	B760M AORUS ELITE AX
GTIN / EAN	889523035047
