GIGABYTE B760M C

GIGABYTE B760M C LGA1700 Micro-ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $134.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB760

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

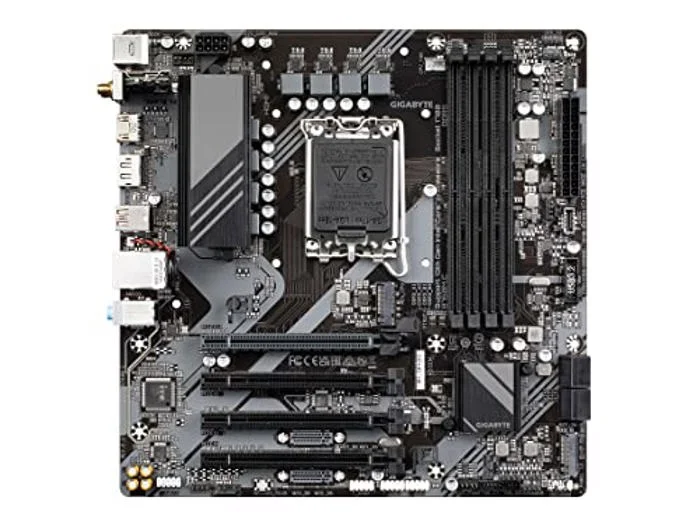

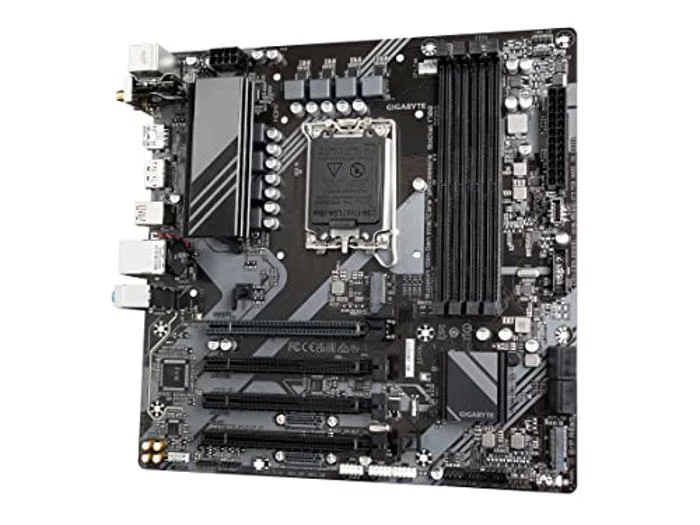

The GIGABYTE B760M C is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7600 MT/s (OC).

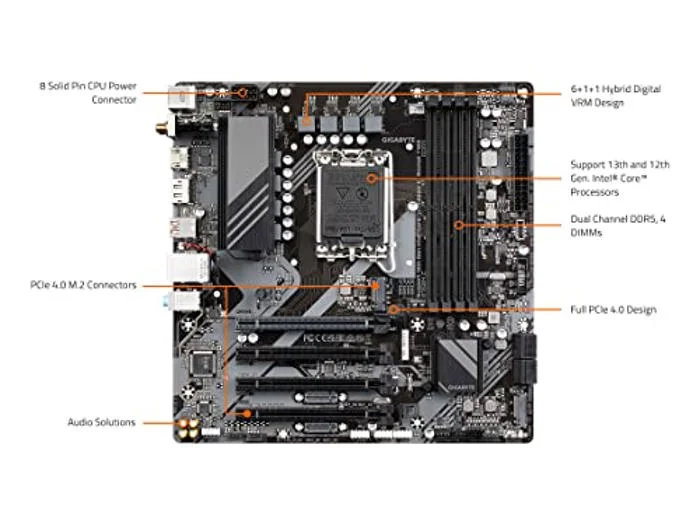

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
Sturdy Power Design: 6+1+1 Hybrid Digital VRM Design
Thermal Design: Enlarged MOSFET Heatsink
Next Gen Connectivity: PCIe 5.0 exansion slot, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
Networking: 1GbE LAN, Realtek Wi-Fi AC
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Manufacturer	Gigabyte
Model Number	B760M C
Launch Date	March 2023
CPU Socket	LGA1700
Chipset Model	Intel B760
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4000 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key, 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B760M C
SKU Code	B760M C
GTIN / EAN	889523036594
