Gigabyte B860M D3HP LGA1851 Micro-ATX DDR5 256 GB Motherboard

Gigabyte Motherboard $119.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetB860

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

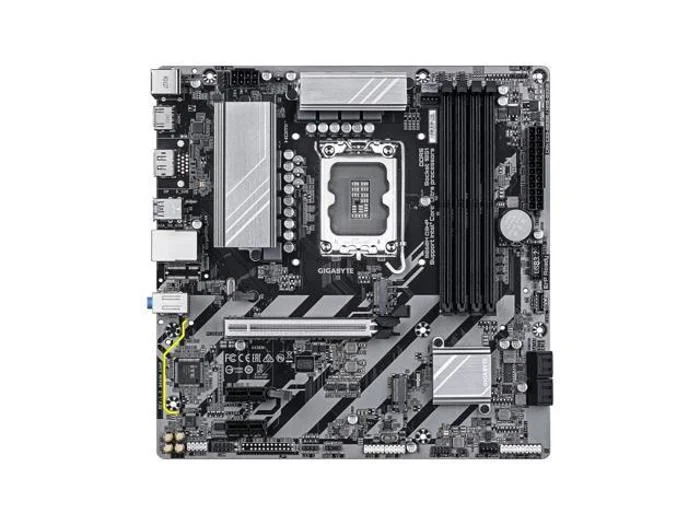

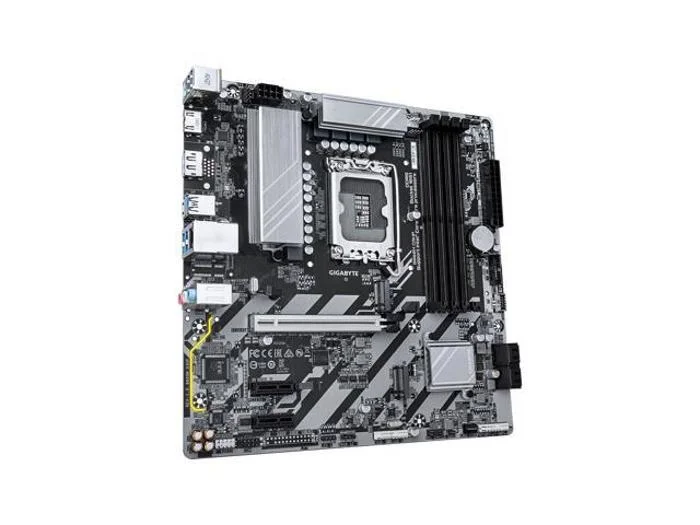

The Gigabyte B860M D3HP is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 9066 MT/s (OC).

GIGABYTE B860M D3HP Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 2x M.2, PCIe 5.0, USB-C, 1GbE LAN, EZ-Latch Memory Standard: DDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066 Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. PCI Express 4.0 x16: Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Max LAN Speed: 1Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 256GB Channel Supported: Dual Channel

Manufacturer	Gigabyte
Model Number	B860M D3HP
Launch Date	January 2025
CPU Socket	LGA1851
Chipset Model	Intel B860
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-9066 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B860M D3HP
SKU Code	B860M D3HP
GTIN / EAN	889523046937
