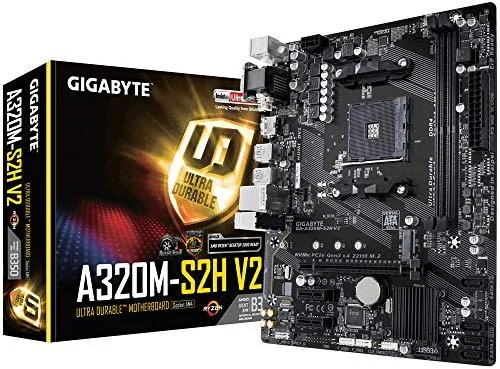

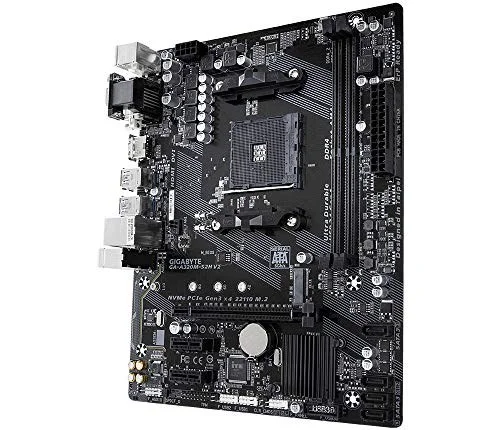

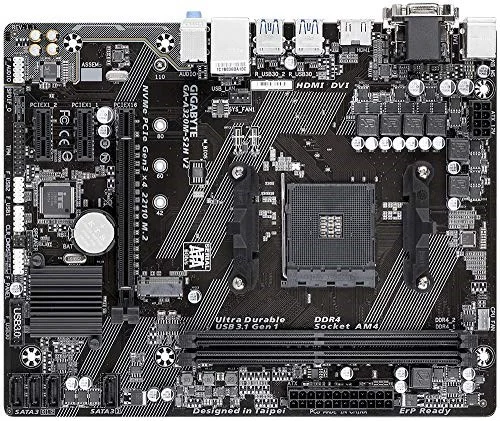

Gigabyte GA-A320M-S2H V2

Gigabyte GA-A320M-S2H V2 AM4 Micro-ATX DDR4 32 GB Motherboard

Gigabyte Motherboard $108

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB350

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte GA-A320M-S2H V2 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

32GB Dual DDR4-SDRAM
Micro ATX Form Factor

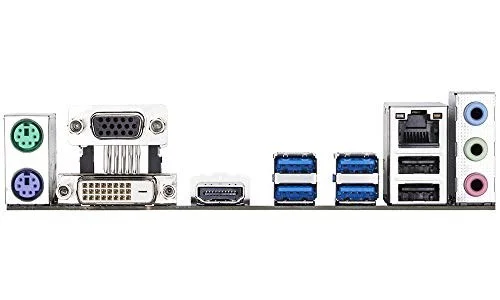

Ports: 2 X USB2.0, 4 X USB3.0 Type-A, 1 X LAN (RJ-45), 2 X PS/2, 1 X VGA (D-Sub), 1 X HDMI, 1 X DVI-D
Chipset: AMD B350
Supports AMD Ryzen & 7Th Generation A-Series, Athlon Processors

Manufacturer	Gigabyte
Model Number	GA-A320M-S2H V2
Launch Date	February 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B350
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	GA-A320M-S2H V2
SKU Code	GA-A320M-S2H V2
GTIN / EAN	4719331804725
