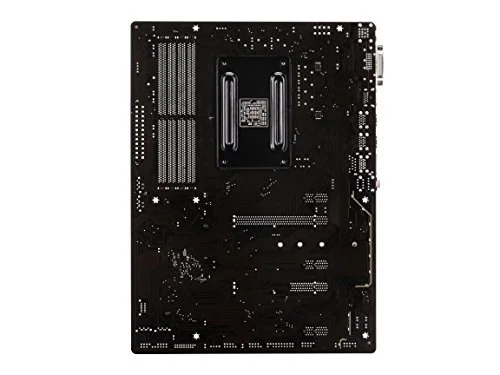

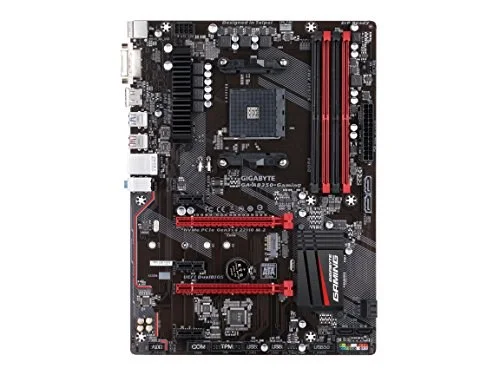

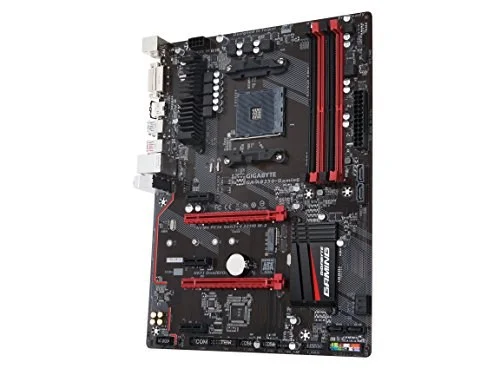

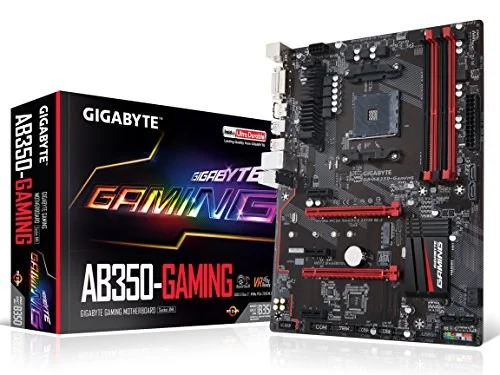

GIGABYTE GA-AB350-Gaming

GIGABYTE GA-AB350-Gaming AM4 ATX DDR4 64 GB Motherboard

Gigabyte Motherboard $68.19

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB350

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE GA-AB350-Gaming is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Supports AMD Ryzen & 7th Generation A-series/ Athlon Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Fast 2 USB 3.1 Gen 2 with USB Type-A
2-Way CrossFire Multi-Graphics Support
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features 6 Temperature Sensors and 4 Hybrid Fan Headers
GIGABYTE UEFI DualBIOS
APP Center Including EasyTune and Cloud Station Utilities

Manufacturer	GIGABYTE
Model Number	GA-AB350-Gaming
Launch Date	March 2017
CPU Socket	AMD Socket AM4
Chipset Model	Intel B350
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	GA-AB350-Gaming
SKU Code	GA-AB350-Gaming
GTIN / EAN	889523009215
