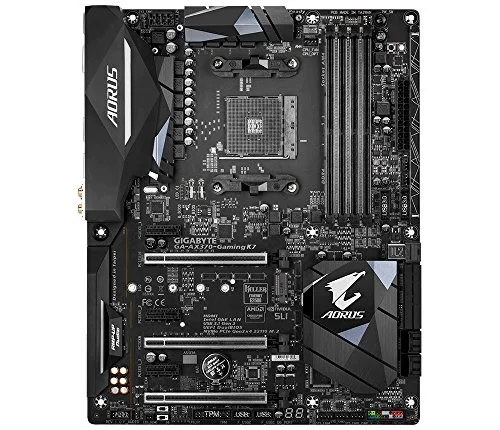

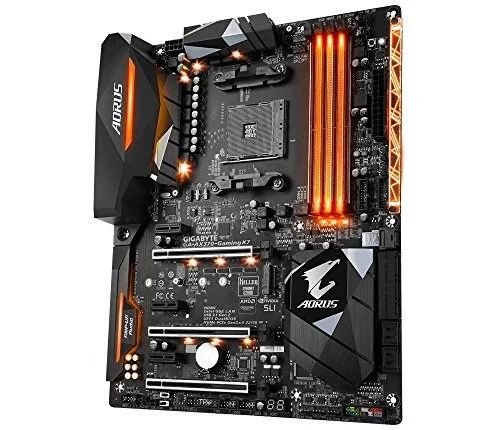

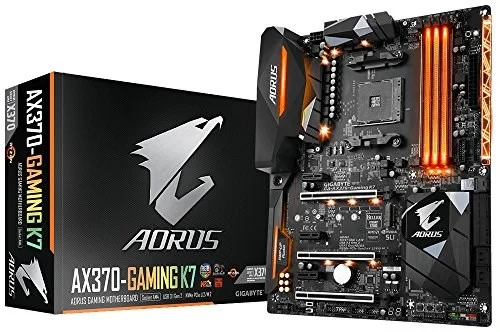

GIGABYTE GA-AX370-GAMING K7

GIGABYTE GA-AX370-GAMING K7 AM4 ATX DDR4 64 GB Motherboard

Gigabyte Motherboard $273.73

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX370

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE GA-AX370-GAMING K7 is a ATX motherboard for AM4. It supports DDR4 memory up to 3600 MT/s (OC).

Supports AMD Ryzen & 7th Generation A-series/ Athlon Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Turbo B-Clock, Built-in Advanced Performance Tuning IC
Fast 4 USB 3.1 Gen 2 with USB Type-C and Type-A
2-Way CrossFire/SLI Multi-Graphics Support with Dual Armor and Ultra Durable Design
NVMe PCIe Gen3 x4 U.2 Connector
Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
Creative Sound Blaster X-Fi MB5 support
Dual ALC 1220 with Front & Rear 120dB SNR HD Audio with Dual Smart Headphone Amps
Killer E2500 Gaming Network + Intel Gigabit LAN
USB DAC-UP 2 & 4 Front USB 3.0 Ports with Adjustable Voltage
RGB FUSION with Multi-Zone LED Light Show design
Swappable Overlay for Accent LED
Smart Fan 5 features 9 Temperature Sensors and 8 Hybrid Fan Headers
2 External Thermistors Headers with 2 Included Thermistors
GIGABYTE UEFI DualBIOS
APP Center Including EasyTune and Cloud Station Utilities

Manufacturer	GIGABYTE
Model Number	GA-AX370-GAMING K7
Launch Date	March 2017
CPU Socket	AMD Socket AM4
Chipset Model	Intel X370
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3400 / DDR4-3600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	2
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	GA-AX370-GAMING K7
SKU Code	GA-AX370-GAMING K7
GTIN / EAN	889523009239
