Gigabyte GA-WRX80-SU8-IPMI

Gigabyte GA-WRX80-SU8-IPMI sWRX8 SSI CEB DDR4 1024 GB Motherboard

Gigabyte Motherboard $789.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsWRX8

ChipsetWRX80

Form FactorSSI CEB

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

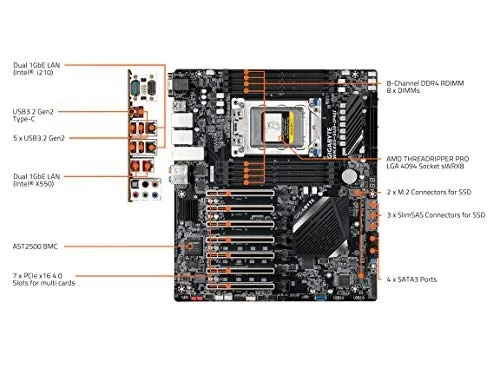

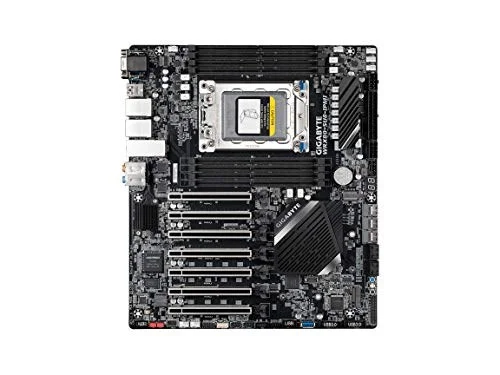

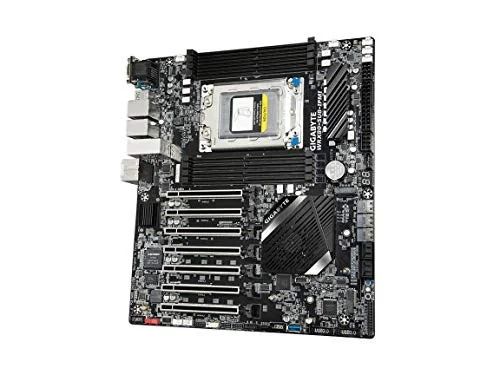

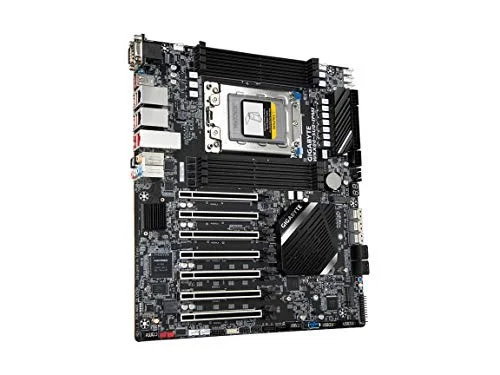

The Gigabyte GA-WRX80-SU8-IPMI is a SSI CEB motherboard for sWRX8. It supports DDR4 memory up to 3200 MT/s (OC).

Manufacturer	Gigabyte
Model Number	WRX80-SU8-IPMI GA-WRX80-SU8-IPMI GA-WRX80-SU8-IPMI (rev. 1.0)
Launch Date	March 2021
CPU Socket	sWRX8
Chipset Model	WRX80
Board Size / Form Factor	SSI CEB
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	1024 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	7 × PCIe x16
PCIe x16 (Qty)	7
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2280 - M Key, 2242 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	WRX80-SU8-IPMI
SKU Code	WRX80-SU8-IPMI
GTIN / EAN	889523026052
