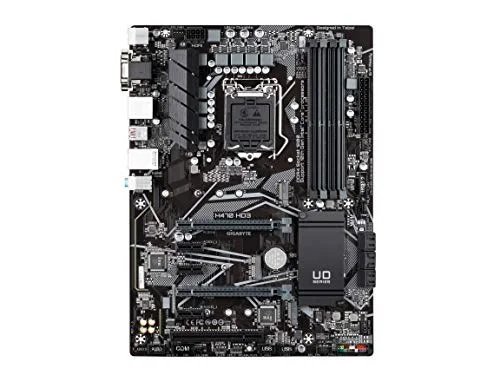

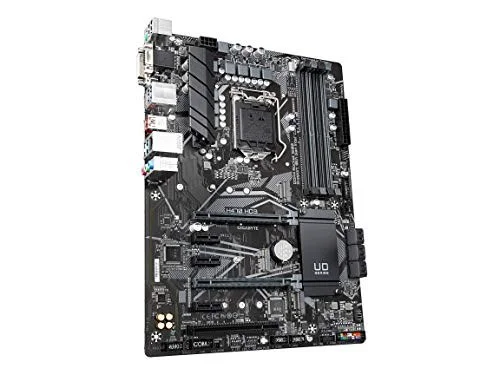

Gigabyte H470 HD3

Gigabyte H470 HD3 LGA1200 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $147.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetH470

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte H470 HD3 is a ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).

Supports 10Th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
Dual Nvme Pcie Gen3 X4 M.2 Connectors
Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers With FAN STOP
Intel Optane Memory Ready
Intel Gbe LAN With Cfosspeed Internet Accelerator Software
Intel USB 3.2 Gen 1 Type-C Support
3 Display Interfaces Support
M.2 E-Key Slot For Pcie WIFI Module Upgradable
Anti-Sulfur Resistors Design

Manufacturer	Gigabyte
Model Number	H470 HD3
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel H470
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	H470 HD3
SKU Code	H470 HD3
GTIN / EAN	889523021965
