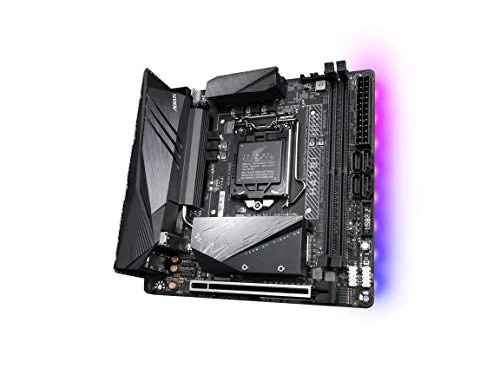

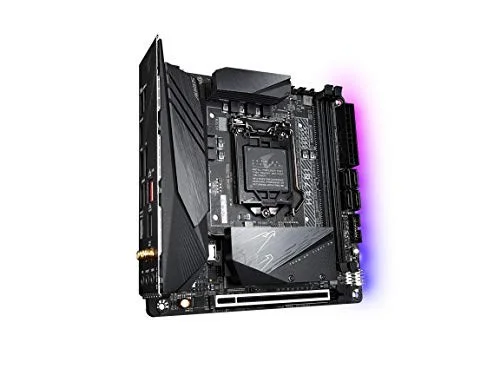

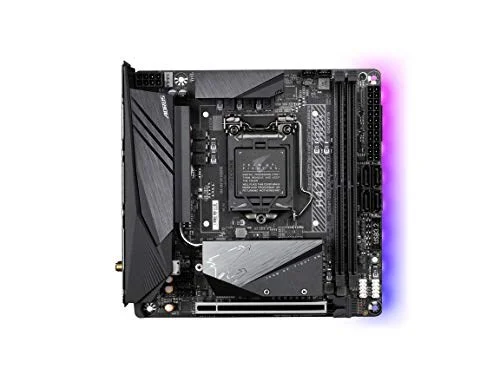

Gigabyte H470I AORUS PRO AX

Gigabyte H470I AORUS PRO AX LGA1200 Mini-ITX DDR4 64 GB Motherboard

Gigabyte Motherboard $179.95

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetH470

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte H470I AORUS PRO AX is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).

Supports 10Th Gen Intel Core Series Processors
Direct 5+1 Phase Digital VRM Design Solution With Drmos
Dual Channel Non-ECC Unbuffered DDR4, 2Dimms
Extended MOSFET Heatsink And Multi-Layered PCH M. 2 Heatsink With Heatpipes And Thermal Baseplate
Supreme Flexibility With Intel Optane Memory Ready
Onboard Intel Wifi 6 802. 11Ax 2T2R & BT5 With AORUS Antenna
Blazing Fast Dual LAN Intel 2. 5Gbe LAN And Intel Gbe LAN With Cfosspeed
HDMI 2. 0 Supports Premium 4K Resolution
Smart Fan 5 Features Multiple Temperature Sensors And Hybrid Fan Headers With FAN STOP
ALC1220-VB Enhance 114Db(Rear)/ 110Db(Front) SNR In Microphone With WIMA Audio Capacitors

Manufacturer	Gigabyte
Model Number	H470I AORUS PRO AX
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel H470
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	H470I AORUS PRO AX
SKU Code	H470I AORUS PRO AX
GTIN / EAN	889523022061
