GIGABYTE TRX50 AI TOP

GIGABYTE TRX50 AI TOP sTR5 EATX DDR5 2048 GB Motherboard

Gigabyte Motherboard $899.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTR5

ChipsetTRX50

Form FactorEATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

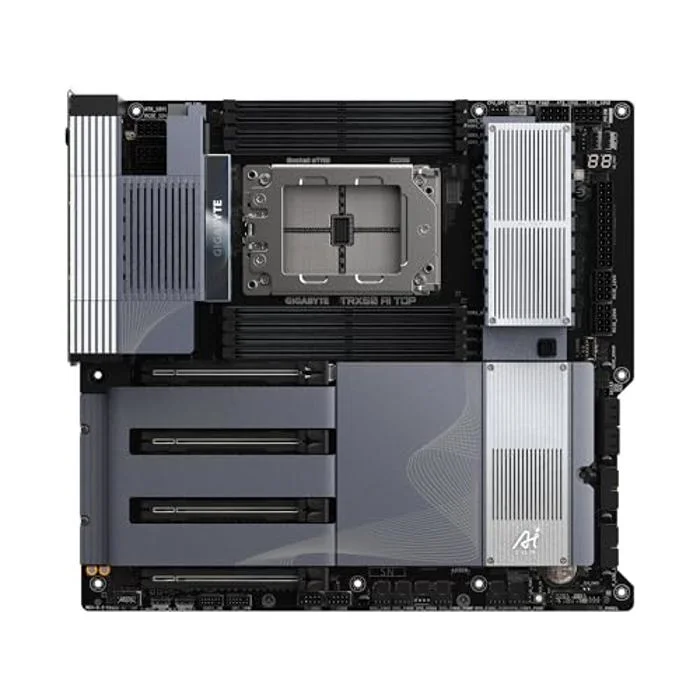

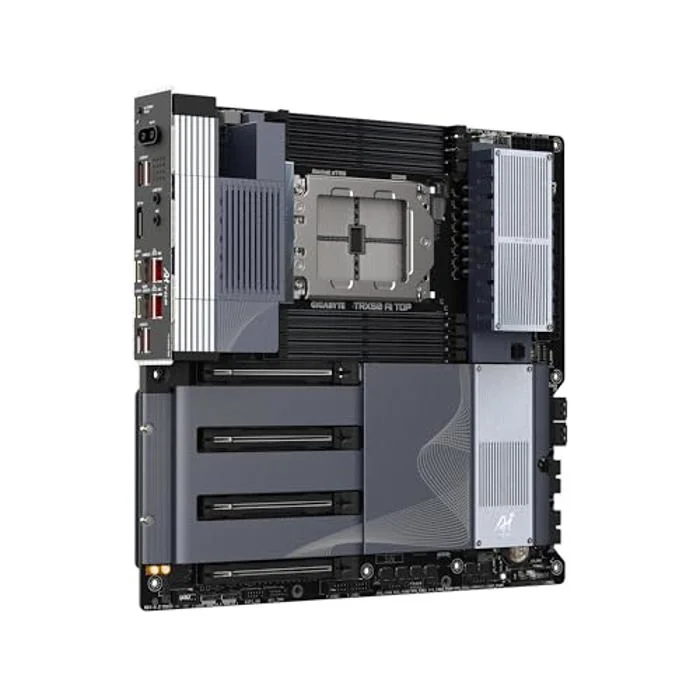

The GIGABYTE TRX50 AI TOP is a EATX motherboard for sTR5. It supports DDR5 memory up to 8000 MT/s (OC).

AMD sTR5 Socket: Supports AMD Ryzen Threadripper PRO 7000 Series Processors/Ryzen Threadripper 7000 Series Processors
Power Design: 16+8+4 Phases Digital VRM Solution
DDR5 Compatible: 8*SMD ECC R-DIMMs with Maximum 2TB capacity
Cutting-Edge Thermal Design: VRM Thermal Armor Advanced, M.2 Thermal Guard

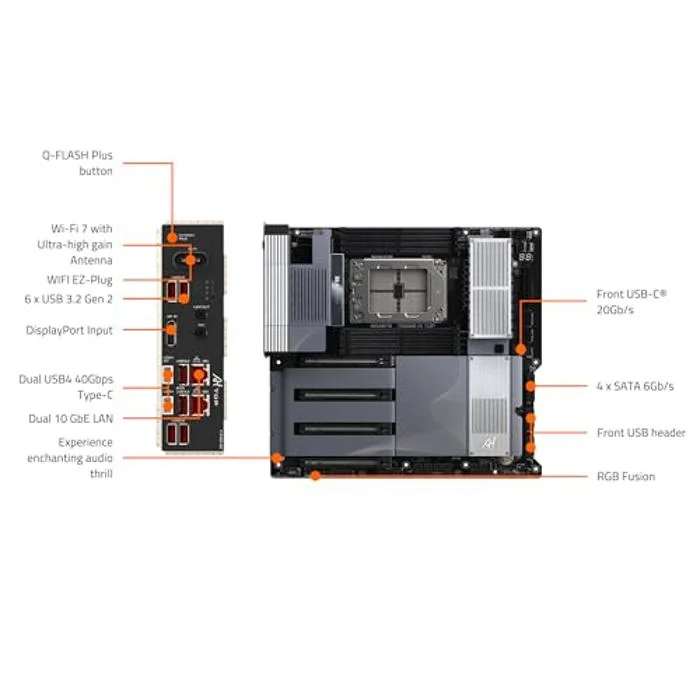

Next Gen Connectivity: Dual USB4 Type-C, PCIe 5.0
EZ-Latch: M.2 Heatsinks, M.2 Slots, PCIe 5.0, & M.2 Connectors with a Quick Release & Screwless Design
Fast Networking: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug

Manufacturer	GIGABYTE
Model Number	TRX50 AI TOP
Launch Date	July 2024
CPU Socket	sTR5
Chipset Model	TRX50
Board Size / Form Factor	EATX
Supported Memory Type	DDR5
DIMM Slots	8
Maximum RAM Capacity	2048 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TRX50 AI TOP
SKU Code	TRX50 AI TOP
GTIN / EAN	889523044667
