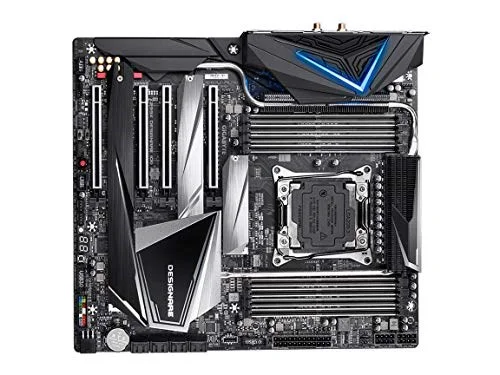

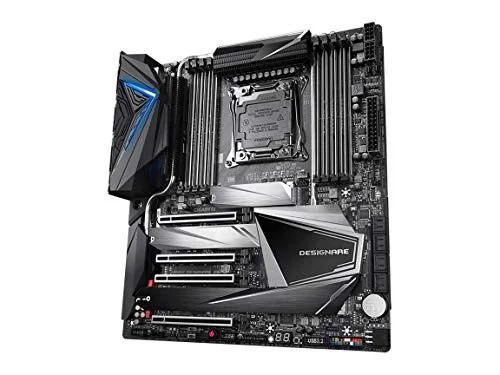

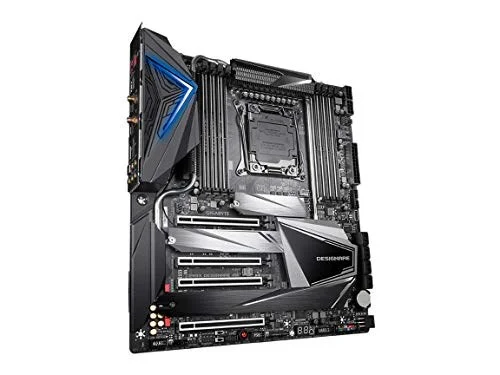

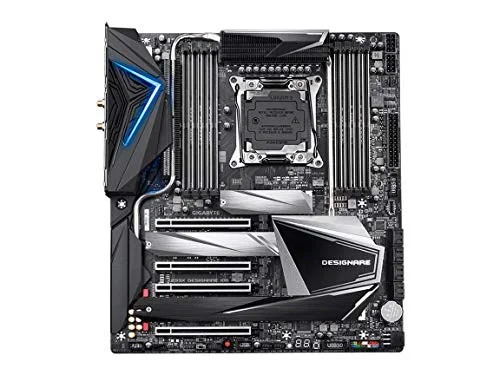

Gigabyte X299X AORUS Designare 10G

Gigabyte X299X AORUS Designare 10G LGA2066 EATX DDR4 256 GB Motherboard

Gigabyte Motherboard $601.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte X299X AORUS Designare 10G is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4333 MT/s (OC).

Supports Intel Core X-Series Processor Family
Quad Channel Non-ECC Unbuffered DDR4, 8 Dimms. Operating System : Support For Windows 10 64-Bit
12 Phases IR Digital VRM Solution With 70A Power Stage

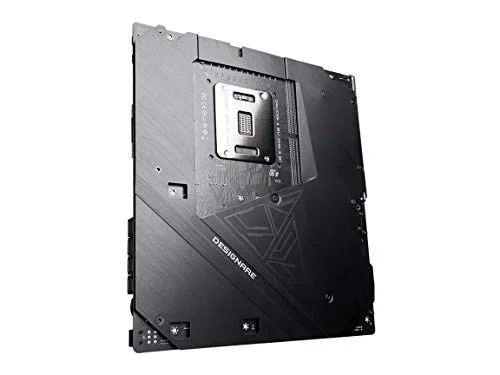

Advanced Fins-Array Thermal Design With Extended Heatpipes/Backplate
Intel Thunderbolt 3 - The USB-C That Does It All

Manufacturer	Gigabyte
Model Number	X299X DESIGNARE 10G X299X DESIGNARE-10G
Launch Date	October 2019
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X299X DESIGNARE 10G
SKU Code	X299X DESIGNARE 10G
GTIN / EAN	889523019627
