GIGABYTE X570S AORUS Elite AX

GIGABYTE X570S AORUS Elite AX AM4 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $194.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

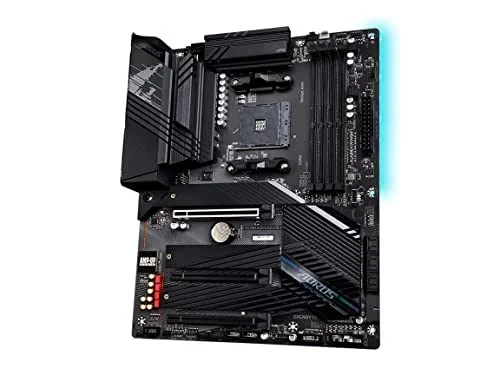

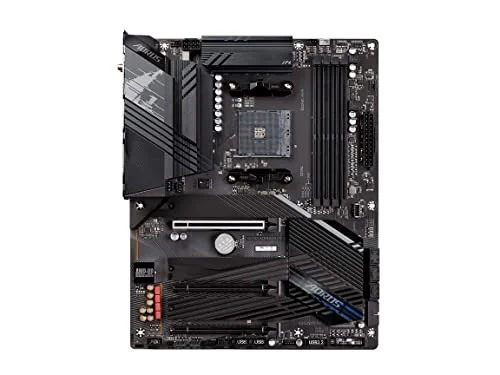

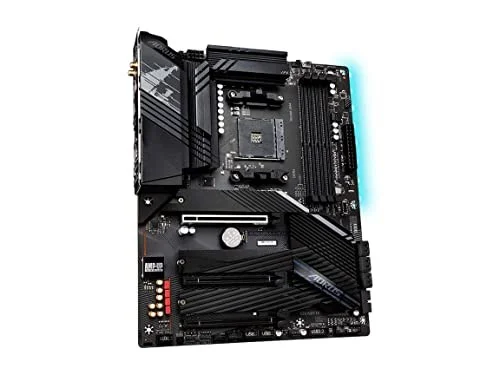

The GIGABYTE X570S AORUS Elite AX is a ATX motherboard for AM4. It supports DDR4 memory up to 5400 MT/s (OC).

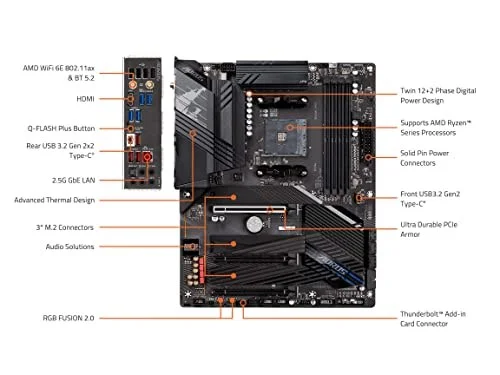

Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
AMD WiFi 6E 802.11ax & BT 5.2
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Fast 2.5GbE LAN with Bandwidth Management
SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds
AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Manufacturer	Gigabyte
Model Number	X570S AORUS ELITE AX X570S AORUS ELITE AX (rev. 1.1)
Launch Date	February 2022
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3300 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5100 / DDR4-5200 / DDR4-5400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X570S AORUS ELITE AX
SKU Code	X570S AORUS ELITE AX
GTIN / EAN	889523028827
