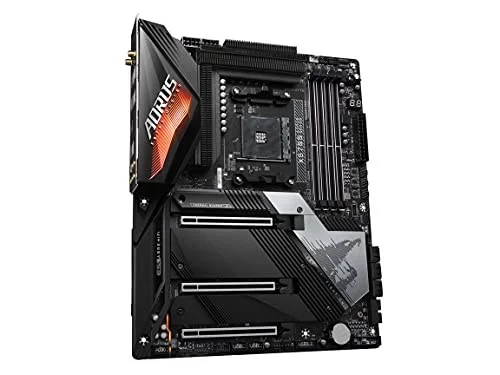

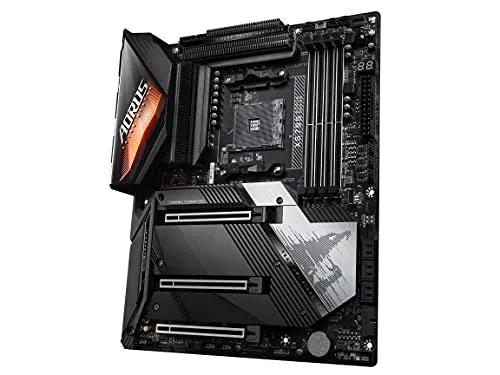

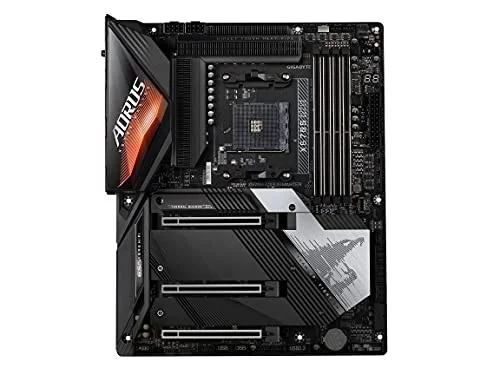

Gigabyte X570S AORUS MASTER

Gigabyte X570S AORUS MASTER AM4 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $362.18

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

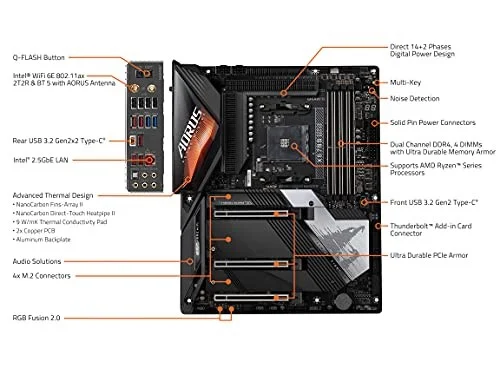

The Gigabyte X570S AORUS MASTER is a ATX motherboard for AM4. It supports DDR4 memory up to 5200 MT/s (OC).

Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage
Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate
Intel WiFi 6E 802.11ax & BT 5.2

Manufacturer	Gigabyte
Model Number	X570S AORUS MASTER
Launch Date	July 2021
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4600 / DDR4-4866 / DDR4-5000 / DDR4-5100 / DDR4-5200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X570S AORUS MASTER
SKU Code	X570S AORUS MASTER
GTIN / EAN	889523028735
