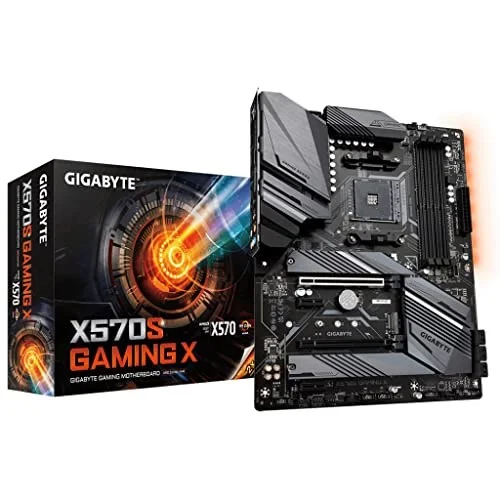

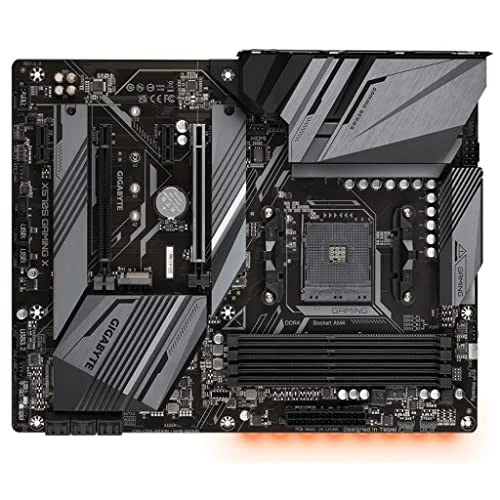

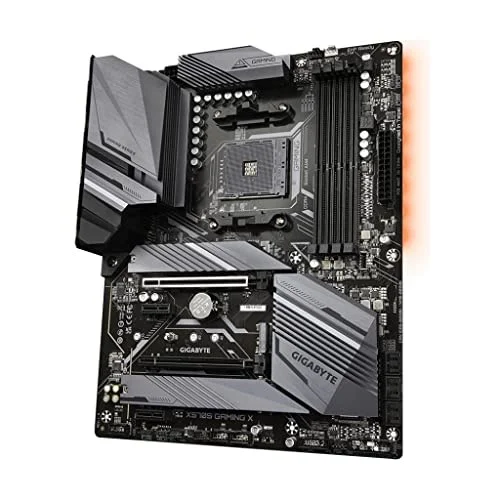

Gigabyte X570S GAMING X

Gigabyte X570S GAMING X AM4 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $129.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte X570S GAMING X is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Fast 2.5GbE LAN with Bandwidth Management

Manufacturer	Gigabyte
Model Number	X570S GAMING X
Launch Date	January 2022
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5100 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X570S GAMING X
SKU Code	X570S GAMING X
GTIN / EAN	4719331823689
