GIGABYTE X570SI AORUS PRO AX

GIGABYTE X570SI AORUS PRO AX AM4 Mini-ITX DDR4 64 GB Motherboard

Gigabyte Motherboard $249.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

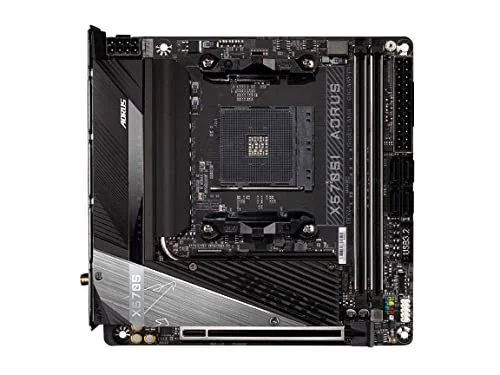

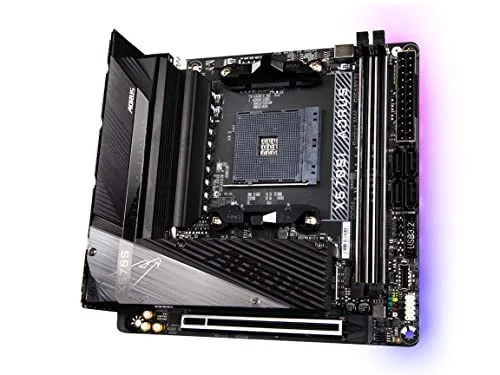

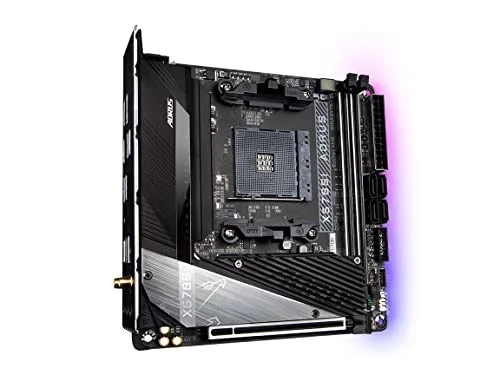

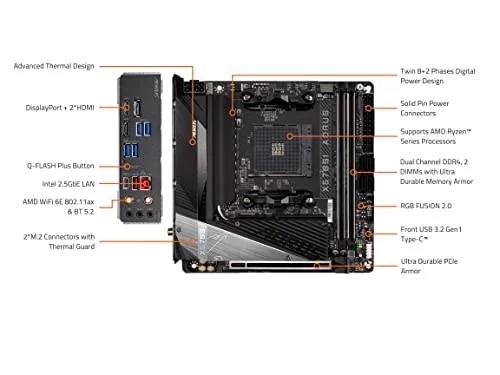

The GIGABYTE X570SI AORUS PRO AX is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 5200 MT/s (OC).

Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Twin 8+2 Phases Digital VRM Solution with 90A Smart Power Stage
Groove Designed and Multi-layered Heatsinks for Chipset and M.2 Thermal Guard III with Heatpipe
AMD WiFi 6E 802.11ax & BT 5.2
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Blazing Fast Intel 2.5GbE LAN with cFosSpeed
Rear and Front USB3.2 Type-C for Fast and Versatile Connections
AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Manufacturer	Gigabyte
Model Number	X570SI AORUS PRO AX X570SI AORUS PRO AX (rev. 1.1)
Launch Date	February 2022
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5100 / DDR4-5200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X570SI AORUS PRO AX
SKU Code	X570SI AORUS PRO AX
GTIN / EAN	889523029664
