Gigabyte Z370M DS3H

Gigabyte Z370M DS3H LGA1151 Micro-ATX DDR4 64 GB Motherboard

Gigabyte Motherboard $161.73

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ370

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

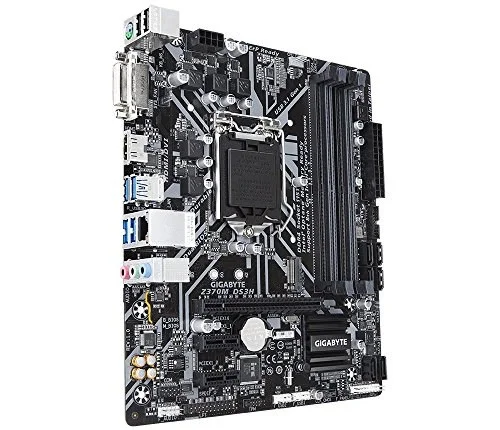

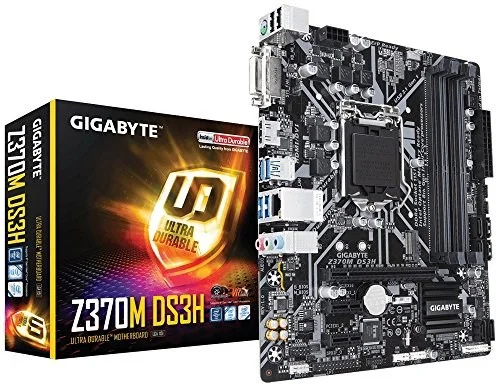

The Gigabyte Z370M DS3H is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 3866 MT/s (OC).

Brand GIGABYTE, Model Z370M DS3H
CPU Socket Type LGA 1151 (300 Series), CPU Type Core i7 / i5 / i3 (8th Gen, LGA1151), Chipset Intel Z370, Onboard Video Chipset Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz,
The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz, Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1GB,
Number of Memory Slots 4×288pin, Memory Standard DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133, Maximum Memory Supported 64GB,
Form Factor Micro ATX, Dimensions (W x L) 8.9" x 7.6", Power Pin 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector,

Manufacturer	Gigabyte
Model Number	Z370M DS3H Z370M DS3H Rev. 1.0
Launch Date	January 2018
CPU Socket	LGA1151
Chipset Model	Intel Z370
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z370M DS3H
SKU Code	Z370M DS3H
GTIN / EAN	889523012215
