GIGABYTE Z390 GAMING X

GIGABYTE Z390 GAMING X LGA1151 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $106.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

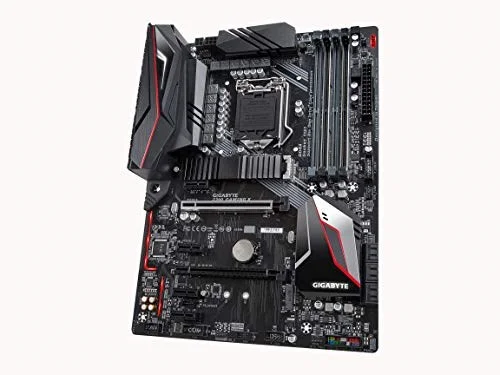

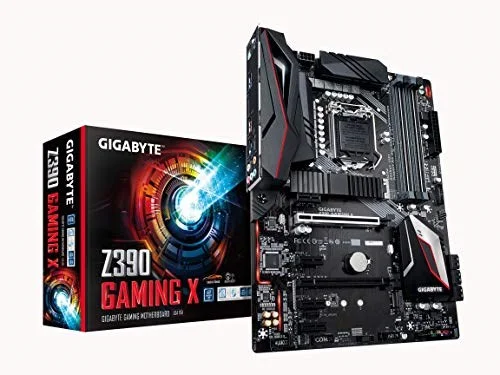

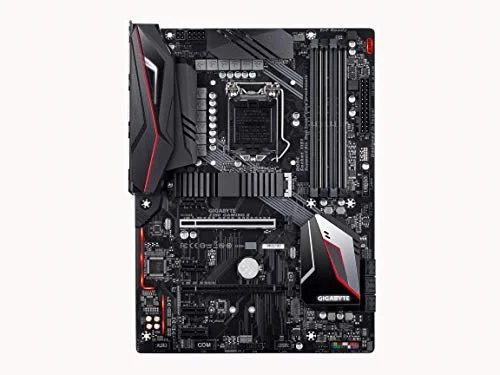

The GIGABYTE Z390 GAMING X is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).

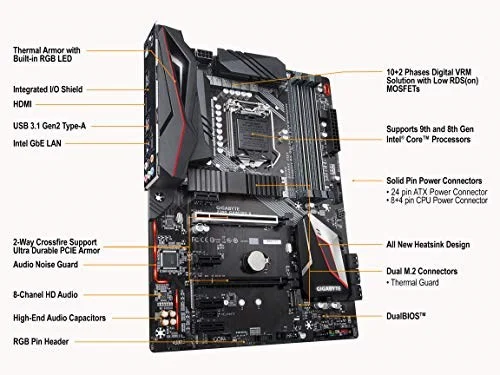

Supports 9th and 8th Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
New 10+2 Phases Digital PWM Design
Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface
2-Way CrossFire Multi-Graphics Support with PCIe Armor and Ultra Durable Design
Intel Native USB 3.1 Gen2 Type-A
Intel GbE LAN with cFosSpeed Internet Accelerator Software
Ultra Durable 25KV ESD and 15KV Surge LAN Protection
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Support RGB Lighting Effect in Full Colors

Manufacturer	GIGABYTE
Model Number	Z390 GAMING X
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

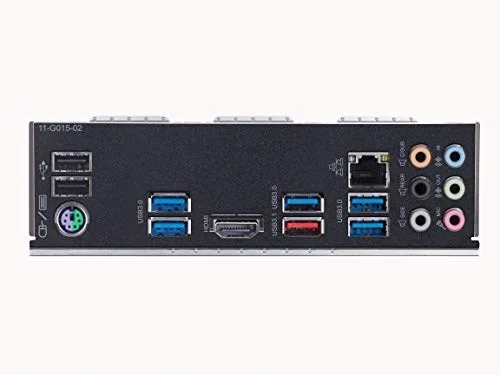

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z390 GAMING X
SKU Code	Z390 GAMING X
GTIN / EAN	889523014905
