GIGABYTE Z390 I AORUS PRO WIFI

GIGABYTE Z390 I AORUS PRO WIFI LGA1151 Mini-ITX DDR4 64 GB Motherboard

Gigabyte Motherboard $181.26

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

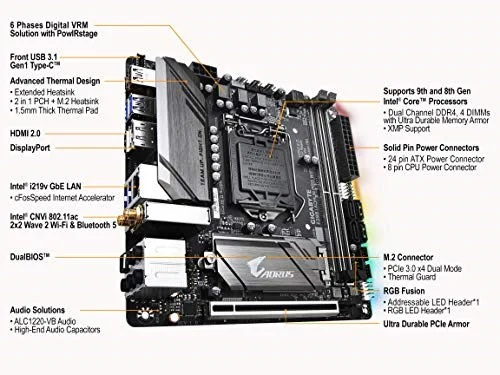

The GIGABYTE Z390 I AORUS PRO WIFI is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 4400 MT/s (OC).

Supports 9th and 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Intel Optane Memory Ready
6 Phases IR Digital VRM Solution with PowIRstage
Advanced Thermal Design with Extended Fin Heatsink
Onboard Intel CNVi 802.11ac 2x2 Wave 2 Wi-Fi
ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
Intel Gigabit LAN with cFosSpeed
RGB FUSION with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Manufacturer	GIGABYTE
Model Number	Z390 I AORUS PRO WIFI
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4333 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z390 I AORUS PRO WIFI
SKU Code	Z390 I AORUS PRO WIFI
GTIN / EAN	889523015124
